38 620 USD

Rifey Concrete Mobile 20

Rifey Concrete Mobile 20
  • 20 cubic

    meters of ready-mixed concrete per hour

  • 1

    included in a 20-ton container

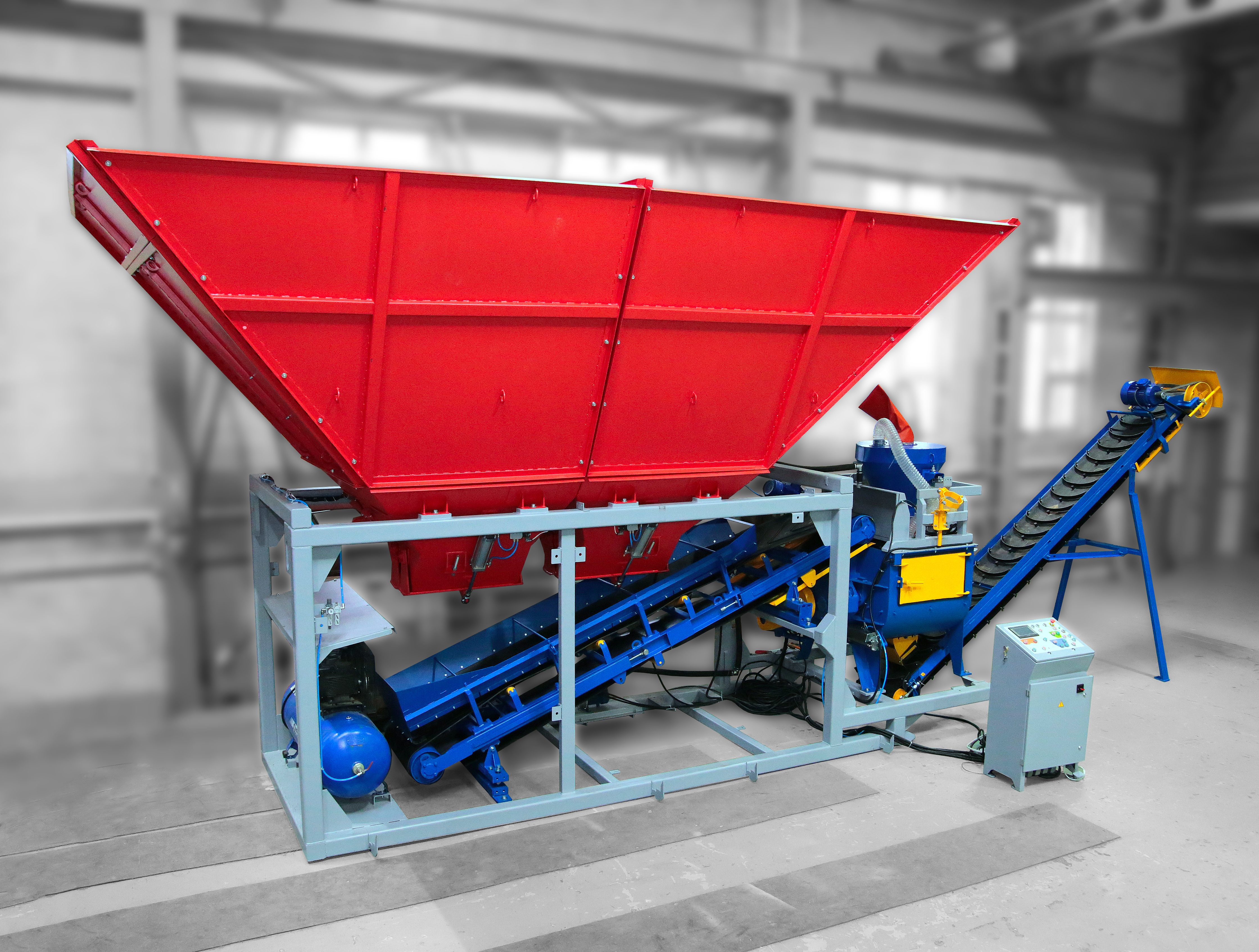

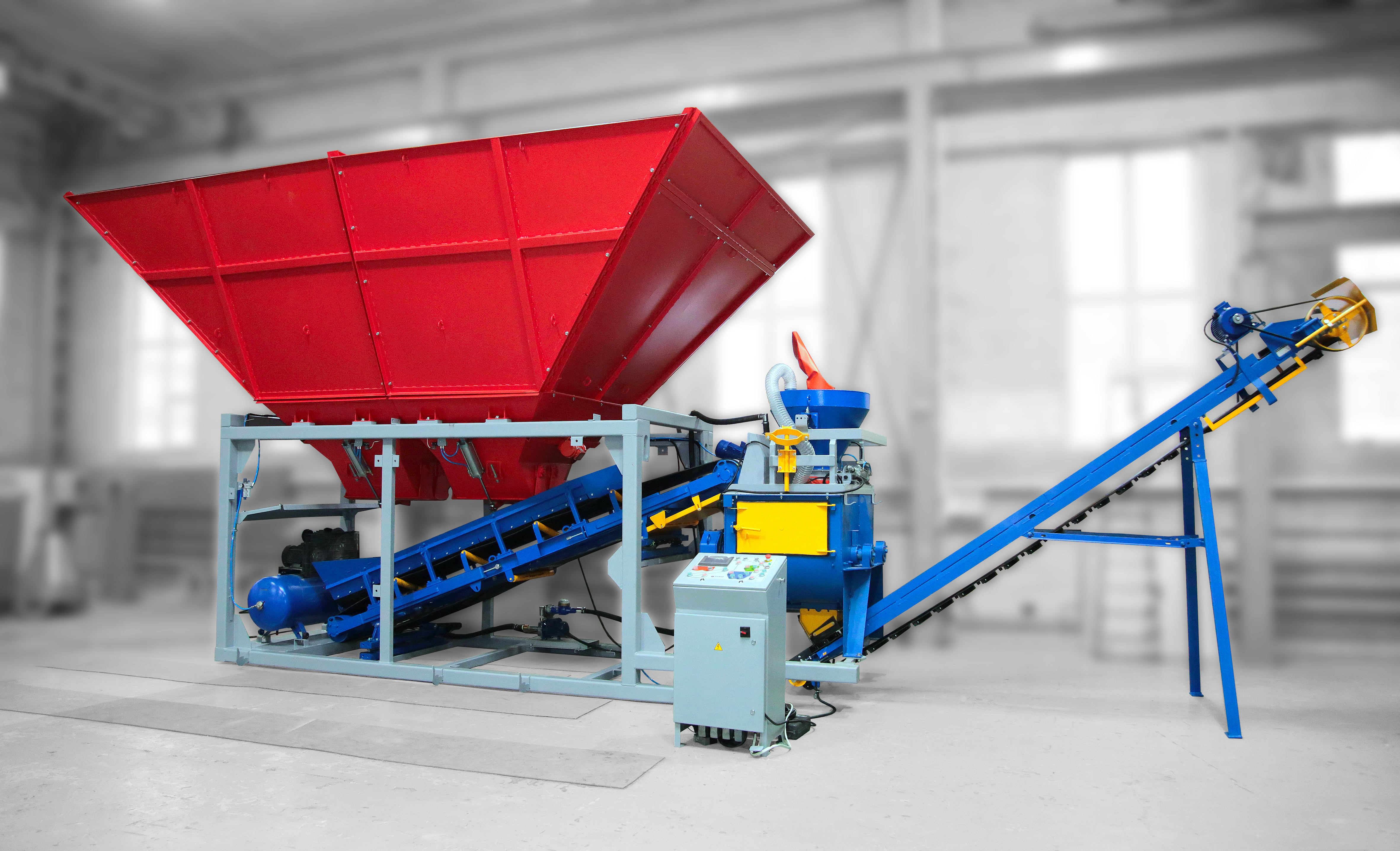

Zavod Stroitekhnika has started production of the installation of Rifey-Concrete-Mobile 20 new mobile concrete plant with a capacity of 20 m3 / hour of ready-mixed concrete.
The advantages of the installation of Rifey-Concrete-Mobile 20 plant include the readiness to produce concrete and cement mixtures of various strengths and homogeneous nature. Including not only liquid, but also concrete compositions of a rigid type. The output capacity is 20 cubic meters per hour.

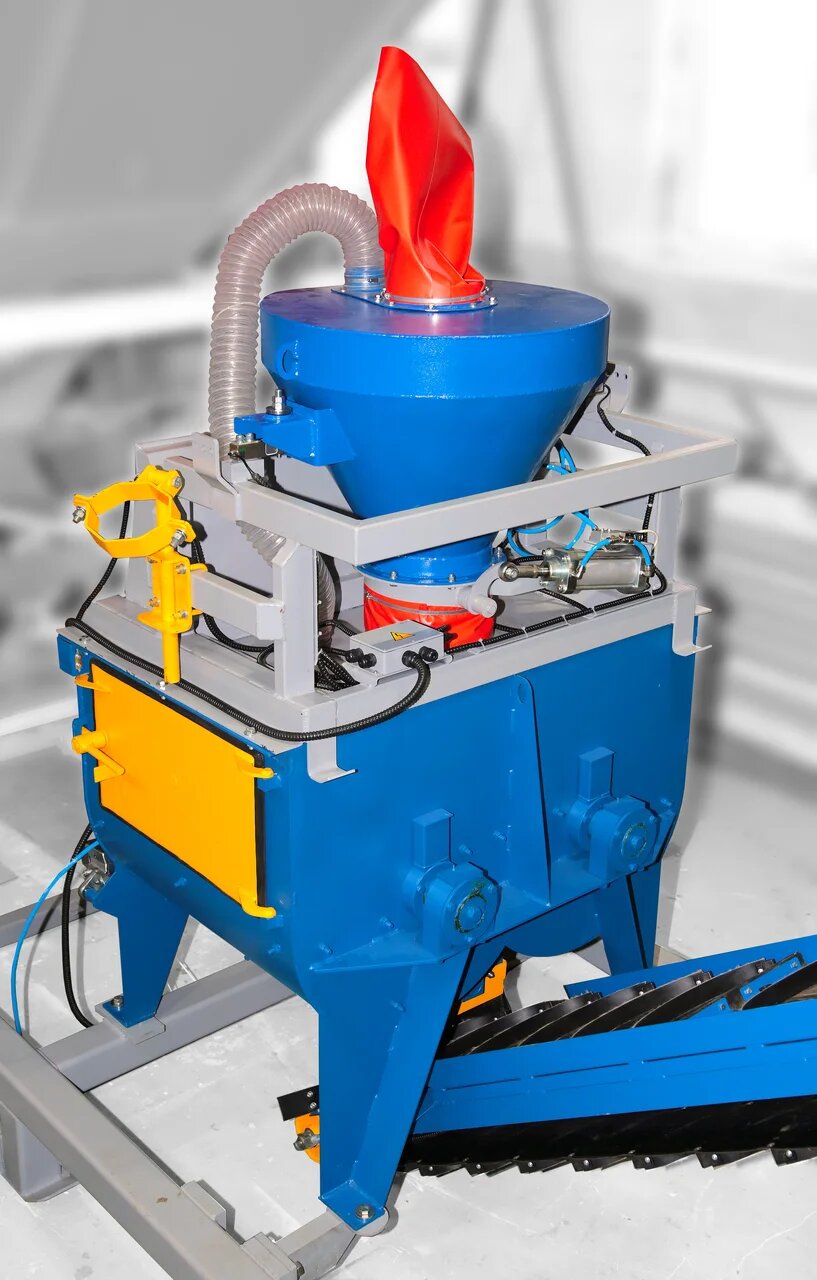

1. BP-2G-375 mixer
2. Load-bearing frame
3. DZ-24 filler hopper (2 bins of 12m3 each)
4. Inclined belt conveyor on load cells
5. ДТС-150 cement hopper (up to 150 kg)
6. DP-400 flow-through water hopper
7. Water supply pump
8. PU-MA remote control with an automatic control system with a monitor ("one button" operation mode)
9. Pneumatic equipment, Compressor
Installed capacity, kW 19
The concrete mixer volume by loading, m3 0.375
Overall dimensions in the transport position, mm
length 5,885
width 2,165
height 2,400
Weight, kg: 5,700
Features of RBM-20 mobile concrete plant

1. "RBM-20" is compact. It can be transported in one 20-foot container. A single frame design allows reducing the equipment installation and launch time. The customer can independently perform the installation / dismantling and transportation of equipment to another site in the shortest possible time.

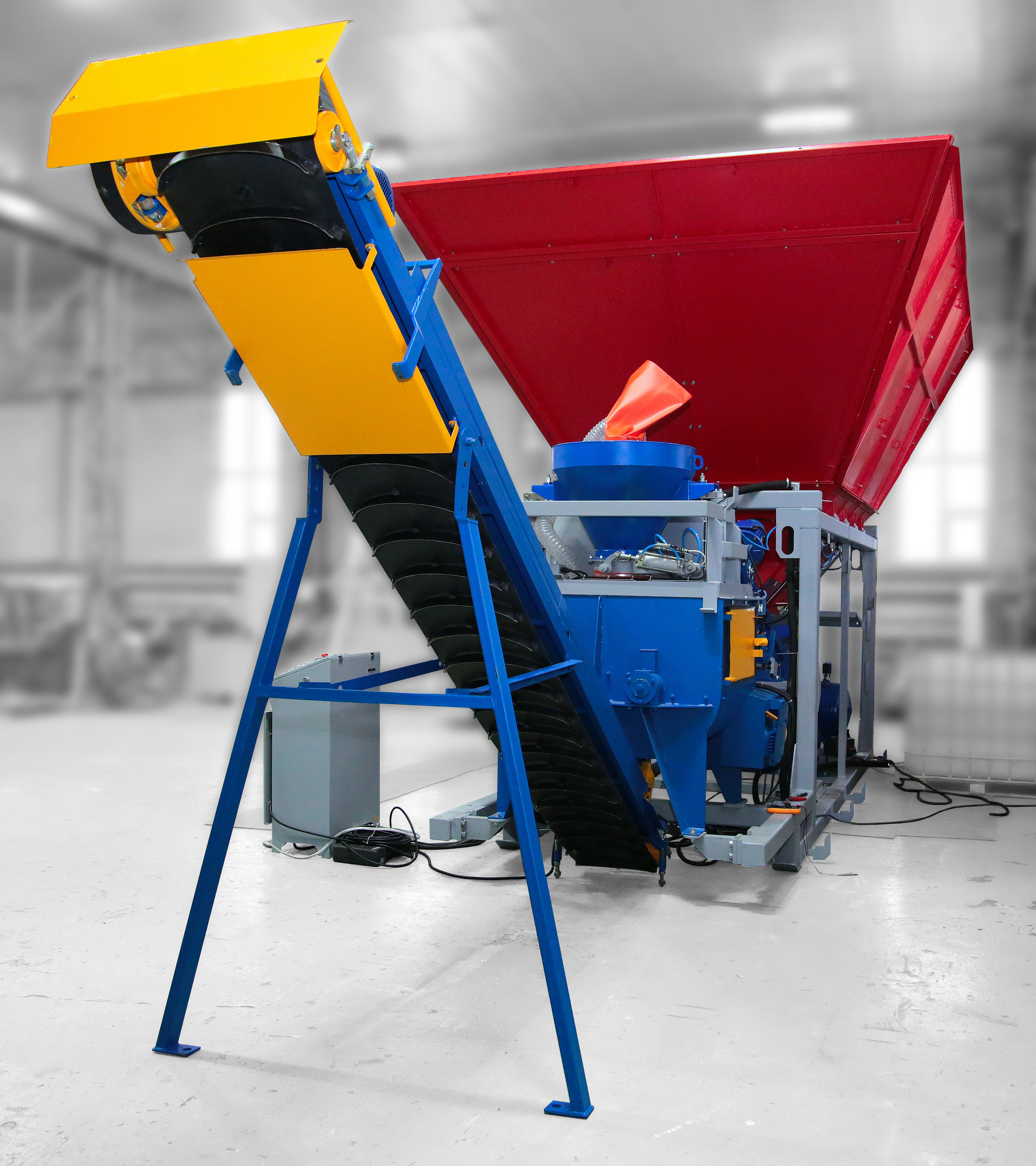

2. RBM-20 can be used for the preparation of mobile mixtures (unloading is carried out into a concrete "bed" or a loader bucket) and rigid mixtures (unloading on a belt conveyor).

3. When preparing rigid mixtures, it is possible to install an unloading conveyor both along the axis of the complex and at an angle of 90 degrees thereto.

4. No pit is required to install the unloading conveyor. This means that a complex special foundation is not needed. This allows minimizing the time and financial costs for the equipment installation.

5. Universal equipment. Production of mortars, ready-mixed concrete, rigid concrete mix for vibropresses. Dosing of two aggregates. It is possible to dose three aggregates with an additional partition wall. Two bins with a total volume of 24 m3. Loading height - 4,160 mm.

6. The cement silo or debagger is installed at the same level with the RBM-20 installation. At the same time, a screw 3 meters long is enough to load cement into the hopper.
