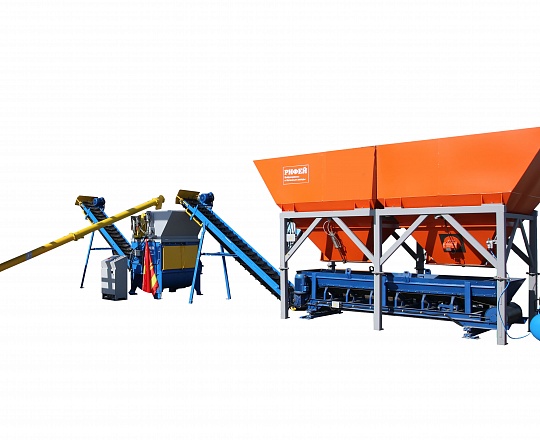

Dosing system SDM 750-5.0-15

half
machine
750 l
mixer volume
15 m3
bunker volume

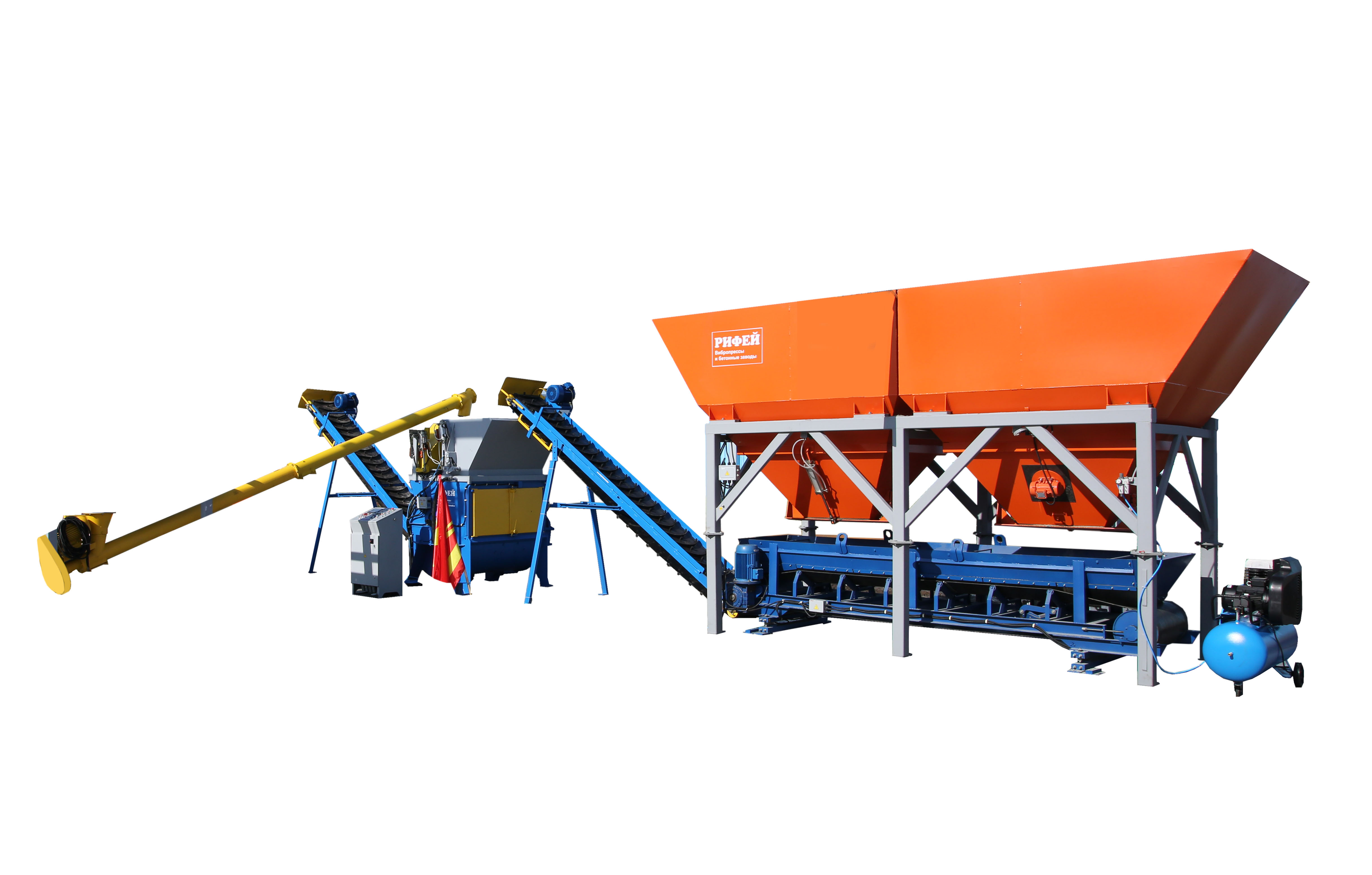

Concrete mixture preparation system 750-SD-15 is used for preparation and uninterrupted supply of high-quality rigid concrete mixture into the bunker of vibrating presses, for continuous forming of concrete products.
This system has a semi-automatic principle of operation, when the dosing of the components, as well as their mixing, occurs automatically, and from manual labor, only the opening of the dampers.
This dosing system is suitable for such vibrating presses as: "Rifey-Udar", Rifey-Polyus ", Rifey-Buran".

Features
Сomposition

1. SG-750 concrete mixer (V=750 l) without hopper.
2. BD-750SDA hopper unit (cement hopper with load cells, flow-through water hopper), on a frame. Flow-through water hopper.
3. DZ-15 filler hopper, 2 bins of 7.5 cubic meters each. Weighing dosing system with load cells.
4. KL-500-5.0 (L-5.0 m) belt conveyor.
5. KL-500-5.0 (L-7.0 m) belt conveyor with adapter bin.
6. KV-6 (L-6 m) screw conveyor.
7. DZ-3K dosing system control panel.
8. Pneumatic equipment.

Capacity of rigid concrete mixture per hour - 12 m3
Number of kneading in 1 hour - 15
Volume of the concrete mixer chamber - 750 l
The amount of finished concrete mixture from 1 batch - 680 liters
Operation mode - semi-automatic
Dosing error - ± 1%
Number of bunkers - 2 pcs., 7.5 m3 each
The total volume of bunkers - 15 m3
Cement supply - screw conveyor
Weight - 7,800 kg
Height - 3.5m, Length - 16.8 m, Width - 4.4 m
Electricity requirements:
Power - 32 kW
Frequency - 50 Hz
Mains voltage - 380 V

Our Advantages

Reliability

We work with big and medium-size companies of Russia, Kazakhstan, Ukraine, Belarus and other countries and always fulfill our obligations in time.

Without any fuss

Shipping, customs control, documentation - we will advise you on all matters, as well as help you set up and configure the equipment

Fast shipping

We have our own logistics system for delivery of products (vehicles, transport companies)

Favourable prices

Due to our own production, our prices are lower than the market averages by 15-50%

Be the first to learn
about discounts! Leave a Request!

45 680 USD
