90 900 USD

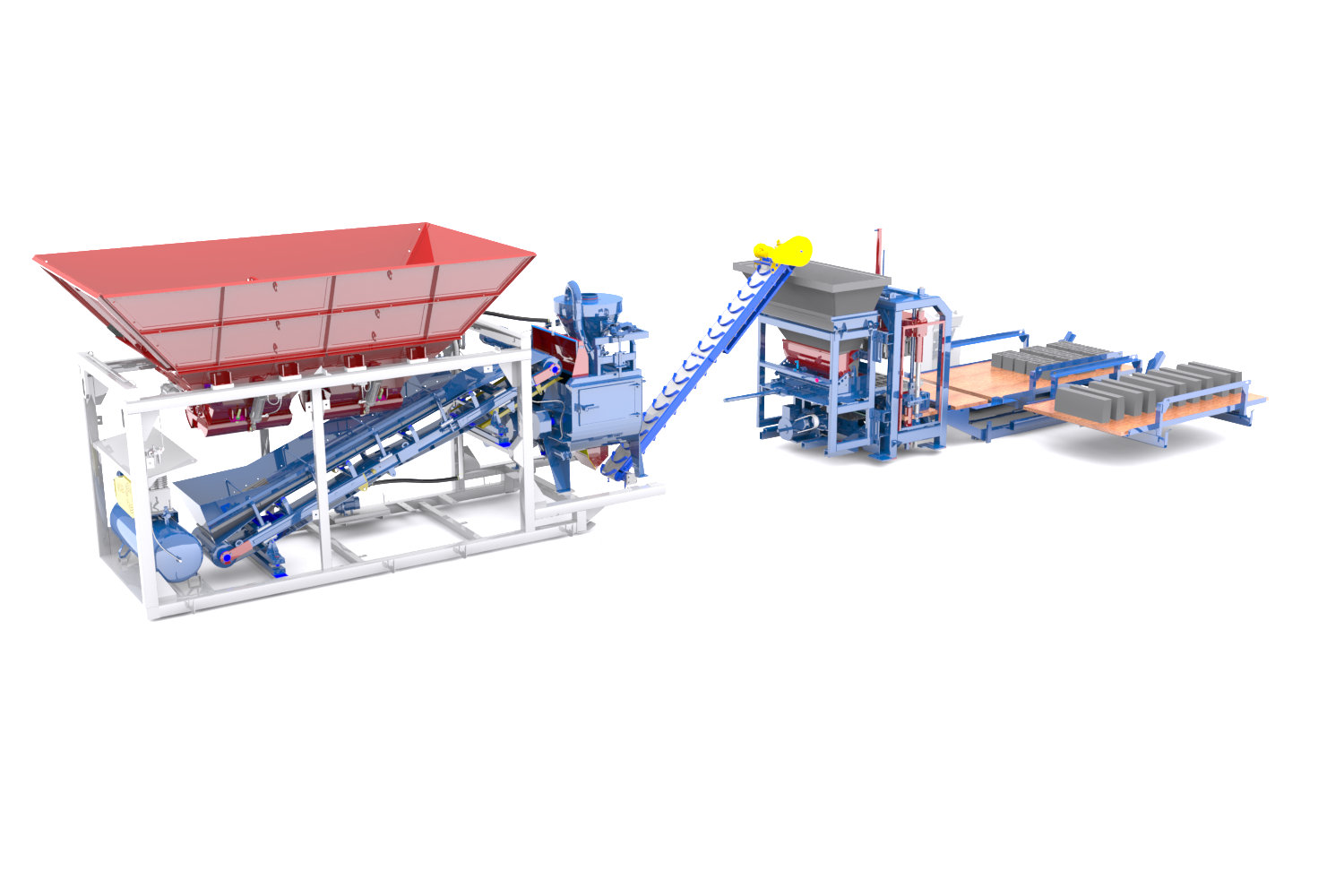

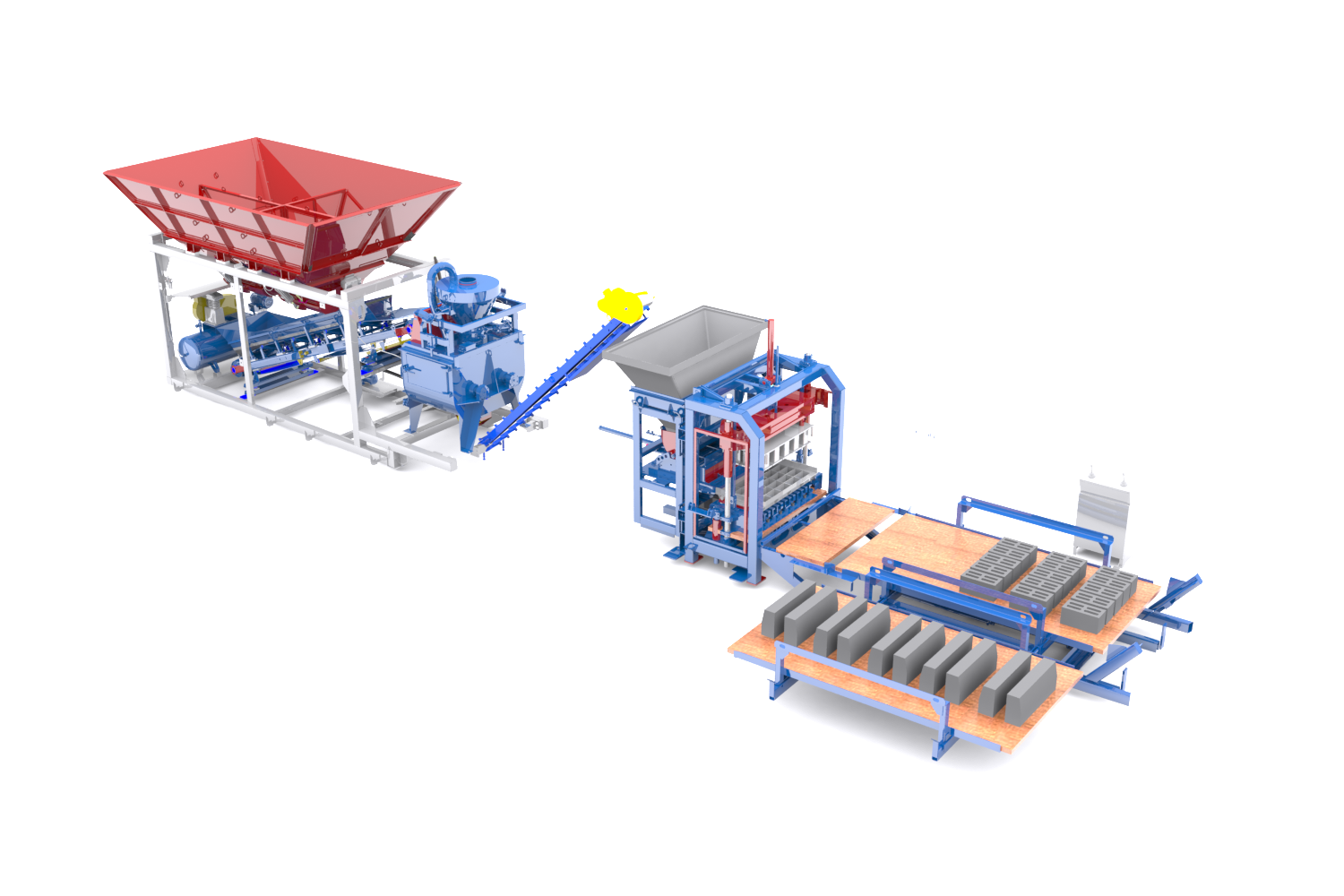

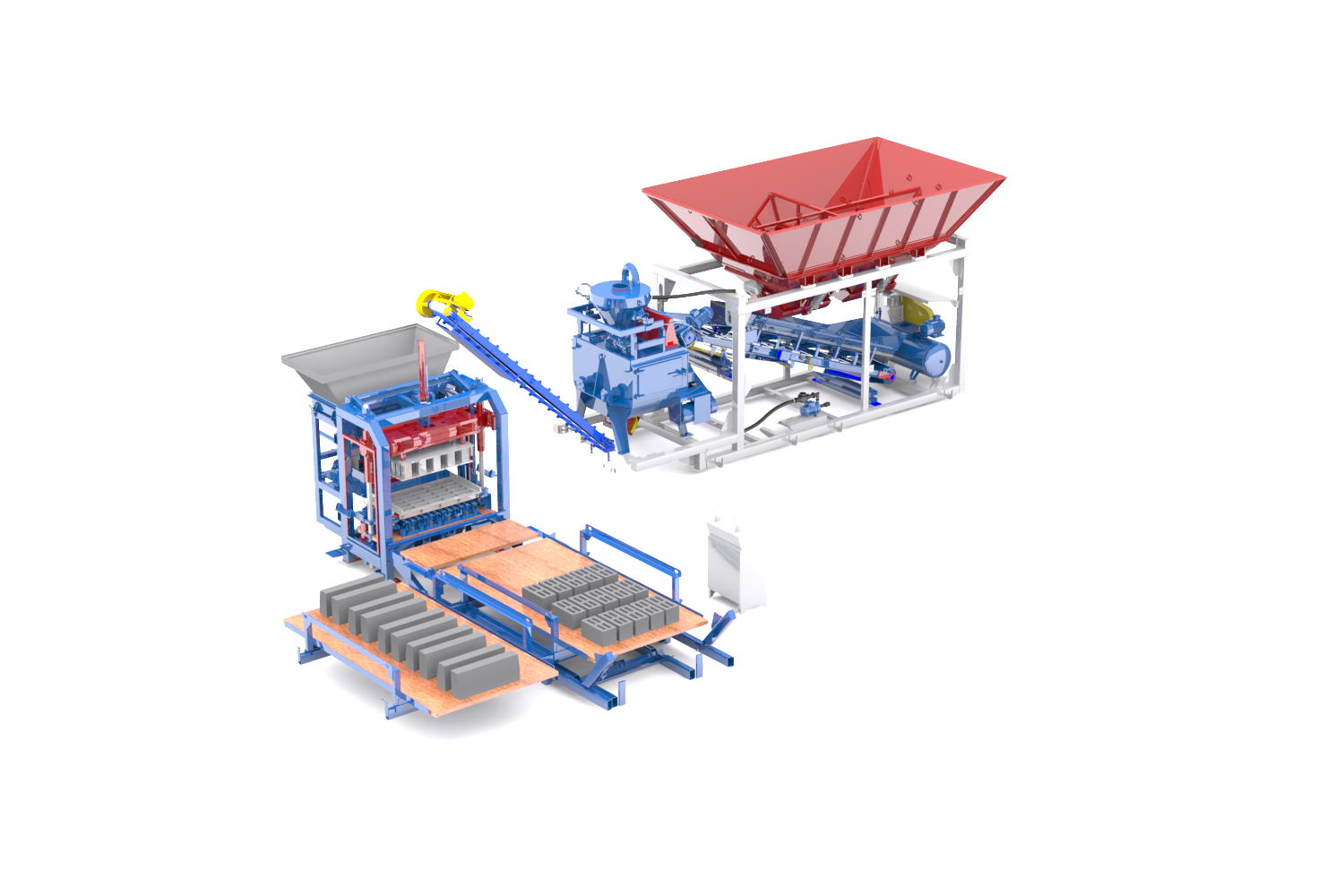

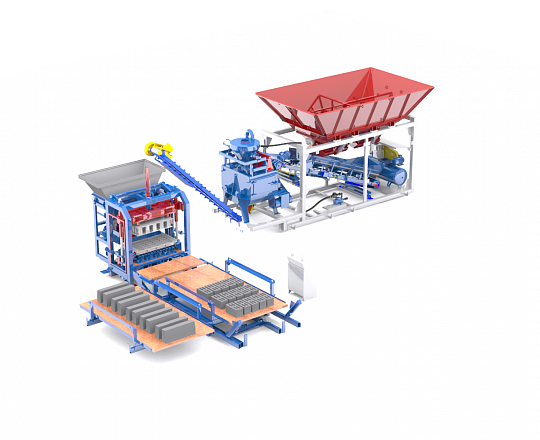

Rifey Buran + RBM20

full
total
Automatic
complex
75
sq. m. sidewalk. tiles / h
140
rm border. stones / h

Advantages
Features
Сomposition

The main distinguishing feature of this complex is fully automatic operation. This model is the most powerful in the Rifey vibropress line. The complex is a technological unit with a low loading height and a batching system (SD). Thanks to the electronic filling, the complex operates exclusively in automatic mode with minimal human involvement. Moreover, the batching system also works in automatic mode. In fact, this is a plant for the serial production of paving slabs, blocks, curbs. One of the main advantages of which can be called a significantly shortened molding cycle - 35-40 seconds. To load the complex with initial components for mixing, a rational scheme for feeding them into the mixing tank has been developed. The high performance of the complex in comparison with analogues of other manufacturers is highly appreciated by users not only in Russia, but also in the Customs Union and the CIS countries.

Productivity of the Rifey-Buran complex pcs / hour.

Cinder blocks 390x190x188 mm - 690 units per hour;
Thickened brick 250x120x88 mm - 1900 pieces per hour;
Paving stones 200x100x70 mm - 75 square meters per hour;
Road curbs 1000x150x300 mm - 140 stones per hour;
Curb stones 1000x80x200 mm - 560 stones per hour;

And what else distinguishes this equipment from analogs on the market:

Rifey-Buran	1. Vibropress Rifey-Buran - Traverse Pallet Feeder - Pallet - 12 pcs. - Shelving unit - 1 pc. - Control panel - Pumping unit - Punch-matrix - 1 pc. (any from the catalog worth 2 491 $)	46 797 $
Dosing system SDA-375-24	1. Mixer BP-2G-375 2. Supporting frame 3. Aggregate batcher DZ-24 (2 bins, 12m3 each) 4. Inclined belt conveyor on load cells 5. Cement batcher DC - 150 (up to 150kg) 6. Flowing water batcher DP-400 7. Pump for water supply 8. Remote control with automatic control system PU-MA with a monitor ("one button" operating mode) 9. Pneumatic equipment, Compressor 10. Screw conveyor - KV-3 (180mm)	37 170 $
Belt conveyor KL-5.0-500		3 534 $

Complex productivity during manufacturing:

- hollow stones 390х190х188 mm - 690 pieces / hour
- partition stones 120mm - 970 pcs / hour
- side stones BR 100.30.15 - 140 pcs / hour
- paving slabs "rectangular", 200x100 mm - 2750 pcs / hour (75 m2)

-Dimensions of the pallet for molding 1150x600x40 mm
-Dimensions of the forming zone on a pallet 1000x500 mm
-Duration of one molding cycle 30-45 sec
-Height of molded products 30-230 mm

Mixer BP-2G-375 volume of concrete mixer loading 0.375 m³
Number of aggregate bins - 2 pcs. (3 pcs)
Total volume of aggregate bins - 24 m³ (2 bins, 12 m³ each)

Installed power - 57.2 kW

Operating mode - automatic

Service staff - 2-5 people

Operating conditions at ambient temperature 0 ... + 45

Gate drive pneumatic

Compressor SB4 / F-270 LB50 "Remeza"

Pneumatics Camozzi

Weighing system for dosing load cells CAS

Dosing accuracy ± 1%

Corrected sound power level at the operator's workplace 80 dB The level of general vibration at the operator's workplace is less than 1/2 dignity. norms (not subject to regulation and control during manufacture and operation in accordance with GOST 12.1.012-90)

No harmful emissions.

The RIFEY BURAN-375-SDA-24 complex is a structure that includes:
