Manufacturing of Rifey and Кondor vibrating presses. Rifey Concrete plants

Official Website

48 620 USD

Vibropress Rifey-Buran

Vibropress Rifey-Buran
  • shock

    VIBROSTOL

  • 690

    wall stones per hour

  • 140

    curb stones per hour

  • 75

    sq. m. sidewalk. tiles per hour

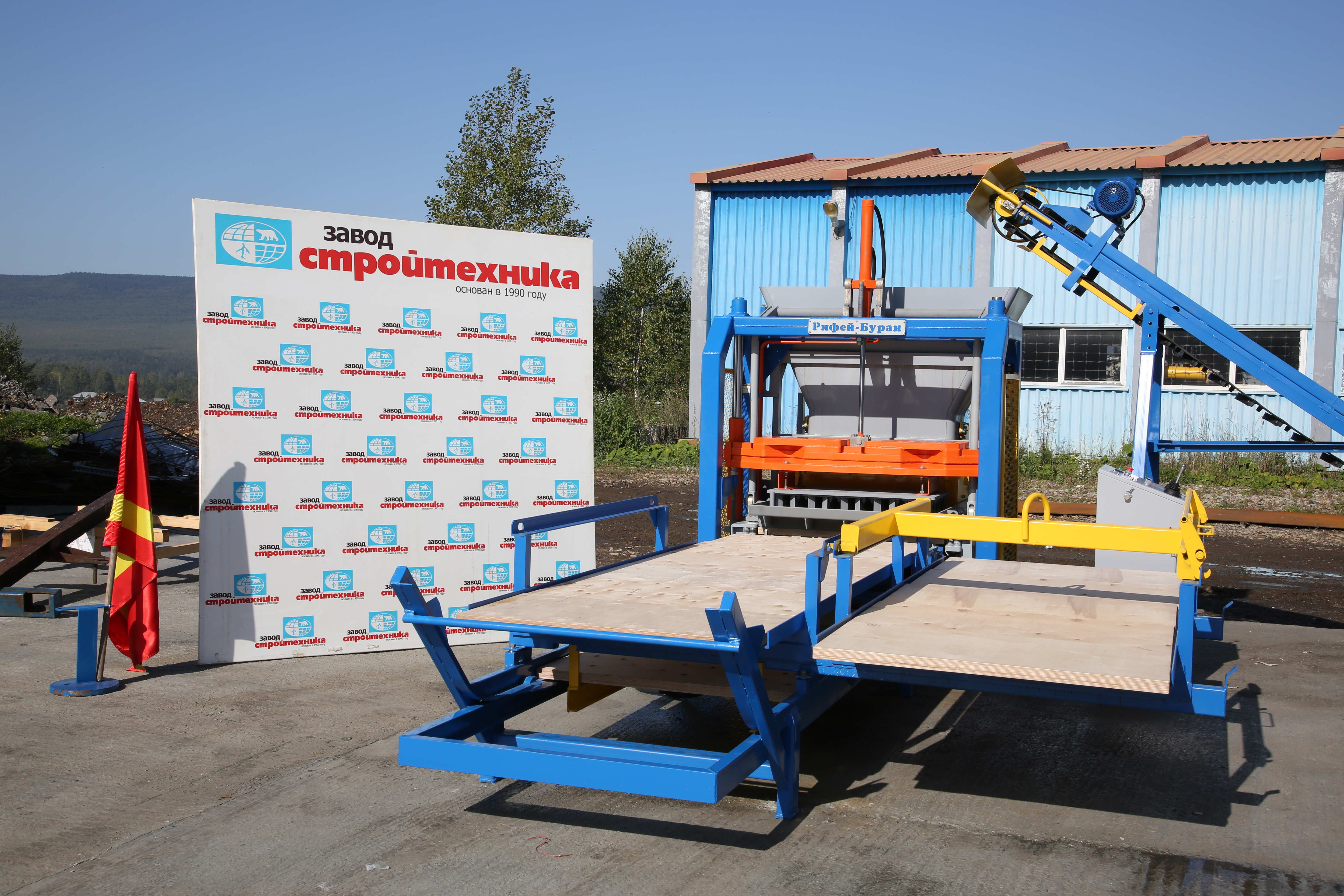

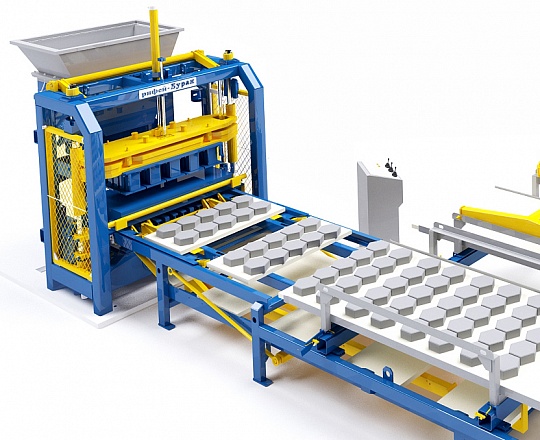

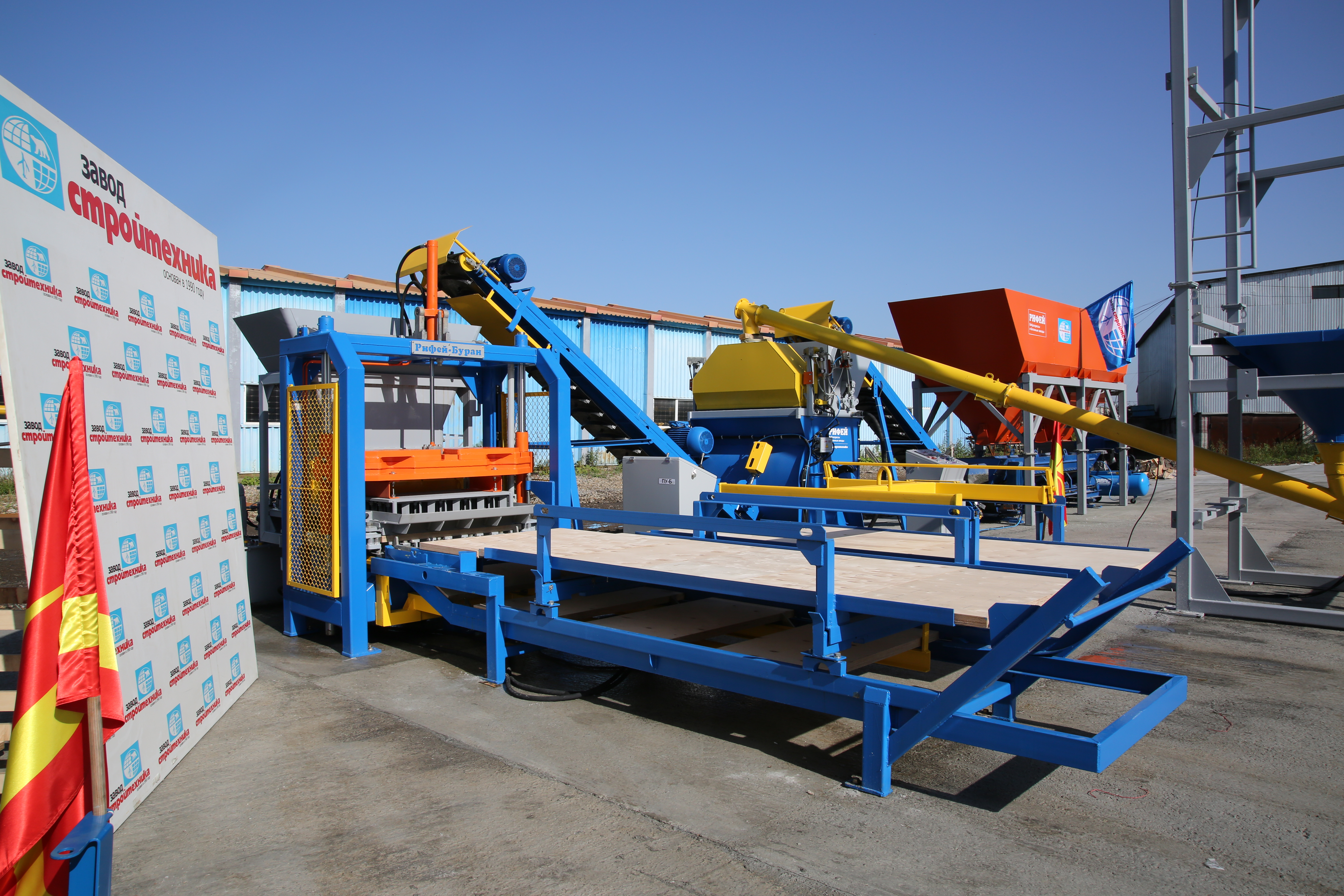

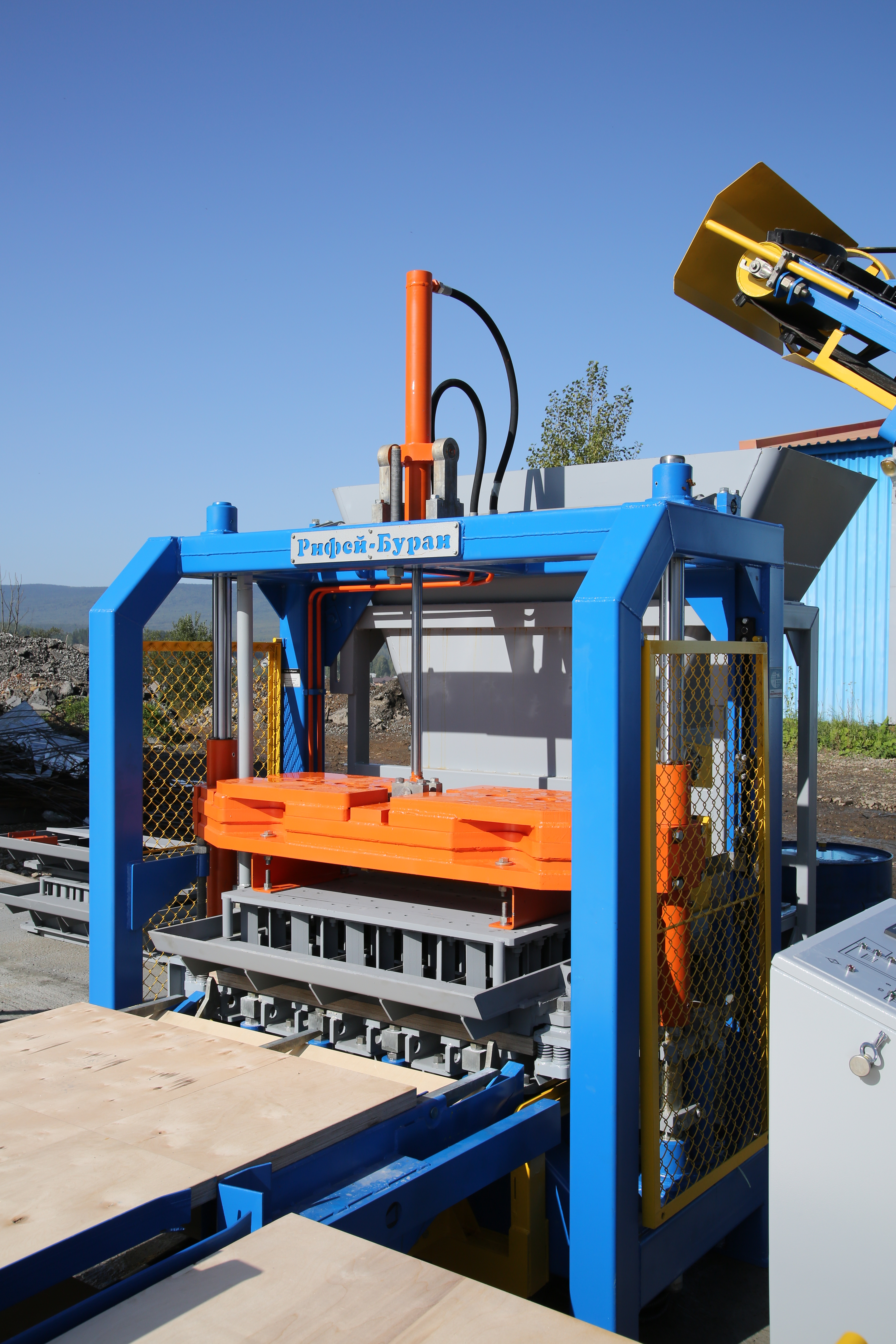

Vibropress for the manufacture of building products “ Rifey-Buran ” is an innovative automated development of the Stroytekhnika Plant. This model is specially designed for the manufacture of various construction products obtained as a result of the processing of hard concrete mixtures by the method of semi-dry vibrocompression.

The advantages of the vibropress Rifey-Buran include easy adjustment of work on the production of various products from hard concrete in an automated mode. The ability to customize work without operator intervention eliminates any potential impact of the "human factor".

The range of manufactured products is limited only by their height from 50 to 250 mm and the dimensions of the formation zone, which is 1000X500 mm. To date, the number of names of products manufactured using this model is estimated at more than 100 types of various building materials .

Design is easy to install. The period of its placement with the supply of water and electricity is 1-2 weeks. Full installation is carried out by 4-5 employees in 4-5 working days.

Productivity of the vibrating press, pcs / hour:

  • hollow stones 390x190x188 mm .............................. ...... 690
  • partition stones 120mm ............................... ............. 970
  • side stones BR 100.30.15 ............................ ................... 140
  • "rectangular" paving slabs, 200x100 mm (m2) ............. 75

Ingredients:

1. Vibropress Rifey-Buran (automatic machine)
-   Traverse Pallet Feeder
-     Pallet   - 12 pcs.
-   Shelving unit - 1 pc.
-   Control panel
-   Pumping unit
-     Punch-matrix - 1 pc. (any from the catalog worth 2 613 $)

Options:
1. Module for making two-color products th
2.   Concrete mixer V-750 l with batcher,   SG-750
3.   Belt conveyor. length   7 m,   KL-650-7.0

Specifications

Forming Zone

500 × 1000 mm

Height of formed products

30-240 mm

Installed capacity

15.0 kW

Weight

4.3 tons

Personnel

1-2 persons

Dimensions

7400 × 2840 × 2800 mm

Performance

Wall blocks 690 pcs / hour
Partition blocks 970 pcs / hour
Paving slabs 75 sq.m / hour
Curbstone 140 m / hour

Features of the "Rifey-Buran" vibropress

The features of this equipment include the ability to quickly and efficiently manufacture such diverse products as:

  • solid and hollow wall stones;
  • half-length wall stones;
  • standard, hollow, hollow thickened and brick;
  • more than 20 types of paving slabs, including complex shapes;
  • broken facing stone;
  • pillar stones;
  • lawn grill and more.

Technical characteristics of the complex

Duration of one molding cycle, sec 30-45
Dimensions of the pallet for molding, mm 1150 x 600
Service staff, people 3-5
Power consumption: voltage, V 380
Frequency, Hz 50
Installed power, kW 36.2

The speed of work execution ensures the simplicity of replacing the forming equipment. The advantage is also the absence of the need to remove the pallets of the structure to load the finished stones, eliminating the need to use human labor at this stage of work. Additional information on the design features of the equipment can be obtained from the managers of the Stroytekhnika plant.

The products manufactured on the "Rifey Buran" vibropress allow the construction of buildings and decoration of territories. The advantage of this model of a vibropress is that it allows you to make elements for construction that do not need additional decorative and finishing actions, since any finished products have a flat and smooth surface. Customers note the ability to use this vibrating press to produce elements of complex shapes that allow creating reliefs on the corners and walls of a building, without using preliminary surface plaster . This significantly improves the decorative appearance of buildings at no additional cost.
