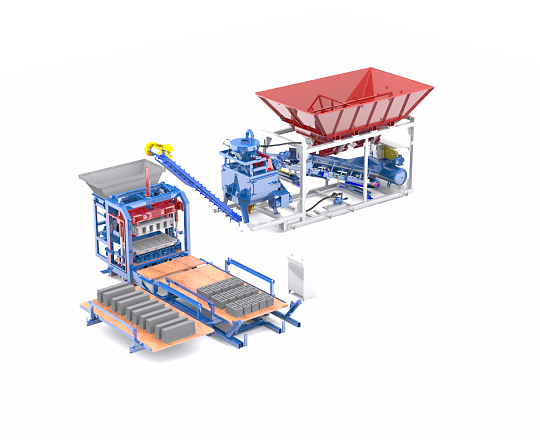

Rifey Polus-2R-375-SDA-24

600
wall stones/h
two borders
one molding
63
sq. m of paving slab/h
160
running meters of curb stones/h

We offer the Rifey Pole-2R-375-SDA-24 vibropressing complex at a bargain price from the manufacturer! This is an innovative domestic development that has no analogues in Russia. The batching system, equipped with modern electronic batchers of concrete mixture components, is capable of showing high productivity in the production of construction products for various purposes.

Advantages
Features
Сomposition

The vibropressing complex “Rifey Polyus-2R-375-SDA-24” is a modern complex that has numerous advantages that make it stand out among high-quality equipment designed for the production of concrete products.

The main advantage of this equipment is the presence of a dosing system that solves such tasks as mechanization and automation of the product manufacturing process. The dosing system itself consists of such elements as: batchers for water, cement, aggregate, belt and auger conveyors and allows you to accurately dose the components necessary for preparing a concrete mixture. For a complete production cycle, our client just needs to choose a suitable cement storage tank (silo or big bag unloader (link) - and you can start making concrete).

In general, the vibropressing complex “Rifey Polyus-2R-375-SDA-24”:

- characterized by high performance;

- ready for long-term intensive use;

- the participation of workers is minimized, which allows to reduce the potential impact of the human factor;

- a wide range of interchangeable dies allows the manufacture of various options for building products:

hollow and solid blocks for construction;
facing and partition stone;
ledgers;
materials for landscaping street areas, etc.

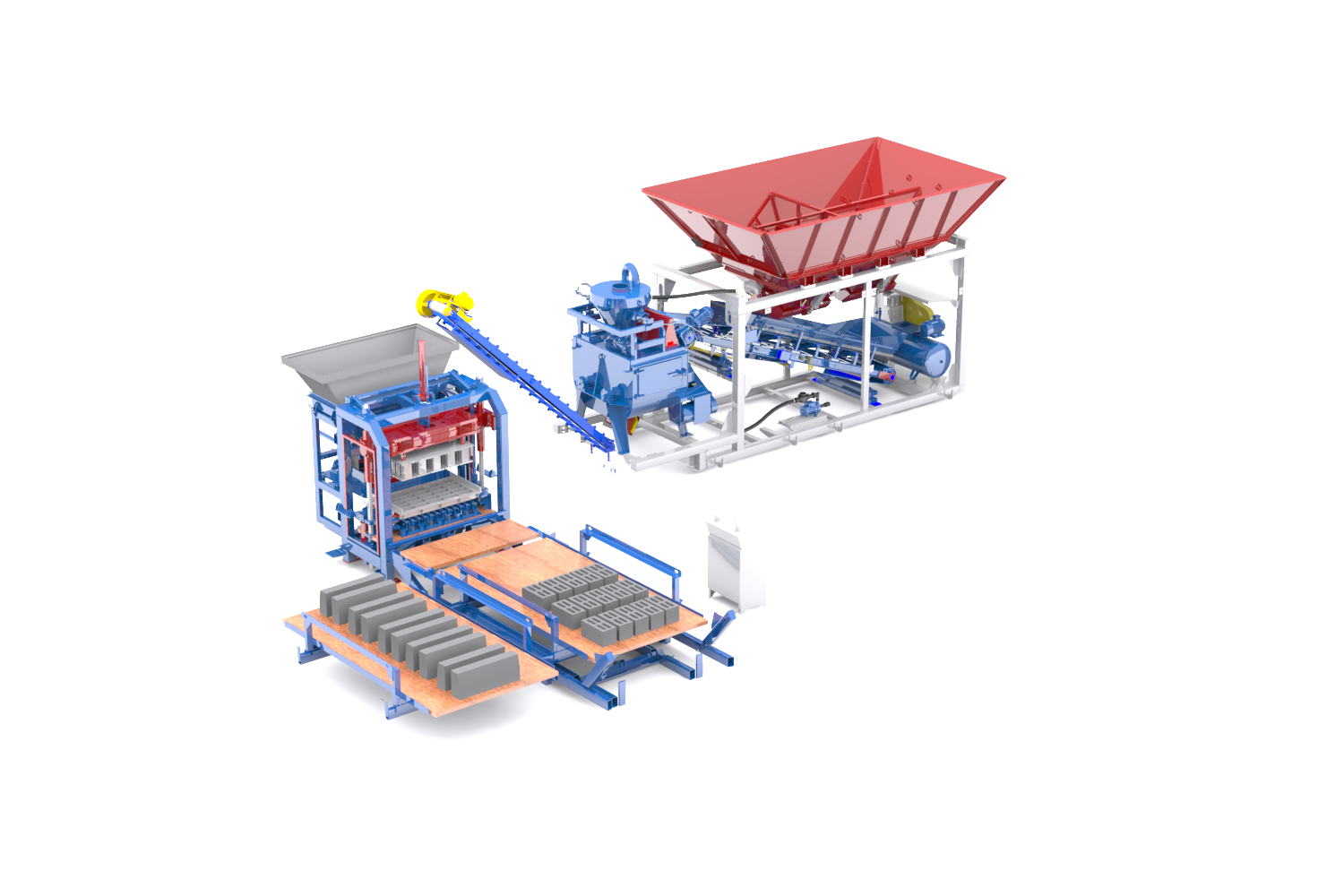

The content of the Rifey-Polyus-375-SDA-24 complex in the basic configuration

SDA-375-24 dosing system

1. BP-2G-375 mixer
2. Load-bearing frame
3. DZ-24 filler hopper (2 bins of 12m3 each)
4. Inclined belt conveyor on load cells5. DTS-150 cement hopper (up to 150 kg)
6. DP-400 flow-through water hopper
7. Water supply pump
8. PU-MA remote control with an automatic control system with a monitor ("one button" operation mode)9. Pneumatic equipment, compressor

The complex capacity:
hollow stones 390x190x188 mm - 600 pcs./hour
partition stones 120 mm - 900 pcs./hour
side stones BR 100.30.15 - 160 pcs./hour
paving "rectangular" slabs, 200x100 mm - 2,750 pcs./hour (63 m2)

Dimensions of the molding tray - 1,150x600x40 mm
Dimensions of the molding area on the pallet - 1,000x500 mm
Duration of one molding cycle - 30-45 seconds
Height of the molded products - 30-300 mm
BP-2G-375 mixer, concrete mixer volume by loading - 0.375 m3
Number of bins for the filler - 2 pcs.
Total volume of the aggregate bins - 24 m3 (2 bins of 12 m3 each) Installed capacity - 55.2 kW
Operation mode - semi-automatic
Service staff - 2-5 persons
Operating conditions at ambient temperature - 0...+45

Shutter drive - pneumatic SB4 / F-270 LB50
Remeza compressor
Camozzi pneumatics
Weight dosing system, CAS load cells
Dosing accuracy ±1%
The corrected sound power level at the operator's workplace is 80 dB
The level of general vibration at the operator's workplace is less than 1/2 san. norms (not subject to rationing and control during manufacture and operation in accordance with GOST 12.1.012-90)
Harmful emissions - no.

Peculiarities

The success of using the Rifey Polyus-2R-375-SDA-24 vibropress was ensured by its technological features, the main of which is the presence of a dosing system consisting of water, cement, filler, belt and screw conveyors, as well as a large selection of matrices that ensure the manufacture of various hard concrete products. It is enough to pay attention to at least a large selection of options for curb stones.

The fully assembled kit is 100% ready for use, thus saving time on starting up the equipment. The set includes a mixer, a batching system, a Rifey Pole-2R vibropress, a pallet feeding module. Line matrices are sold separately. The basic kit contains only one standard die. The line is controlled using a convenient and intuitive remote control that is easy to understand. Additional consultations on the features of this equipment are ready to provide experienced employees of the manufacturing company "Stroytekhnika Plant".
