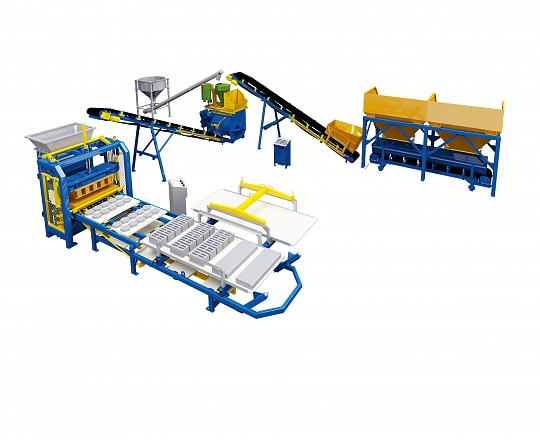

Rifey Polus-750-SD-15

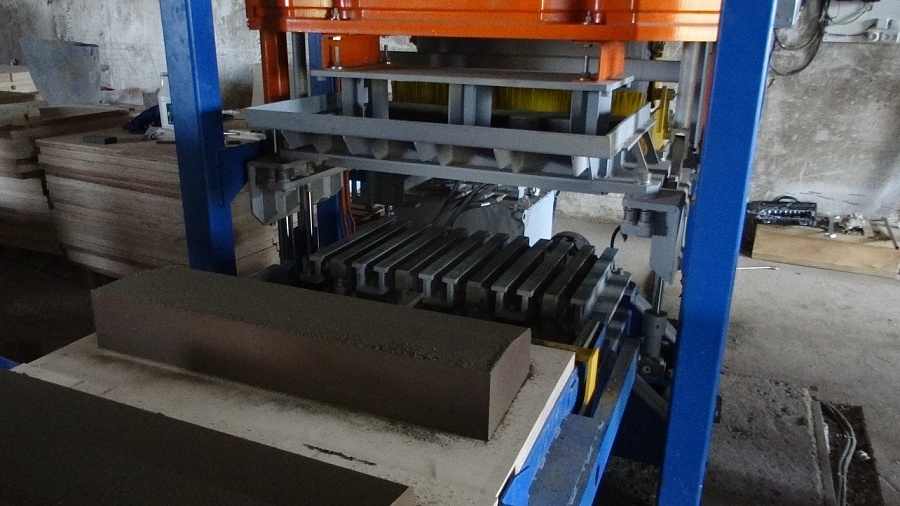

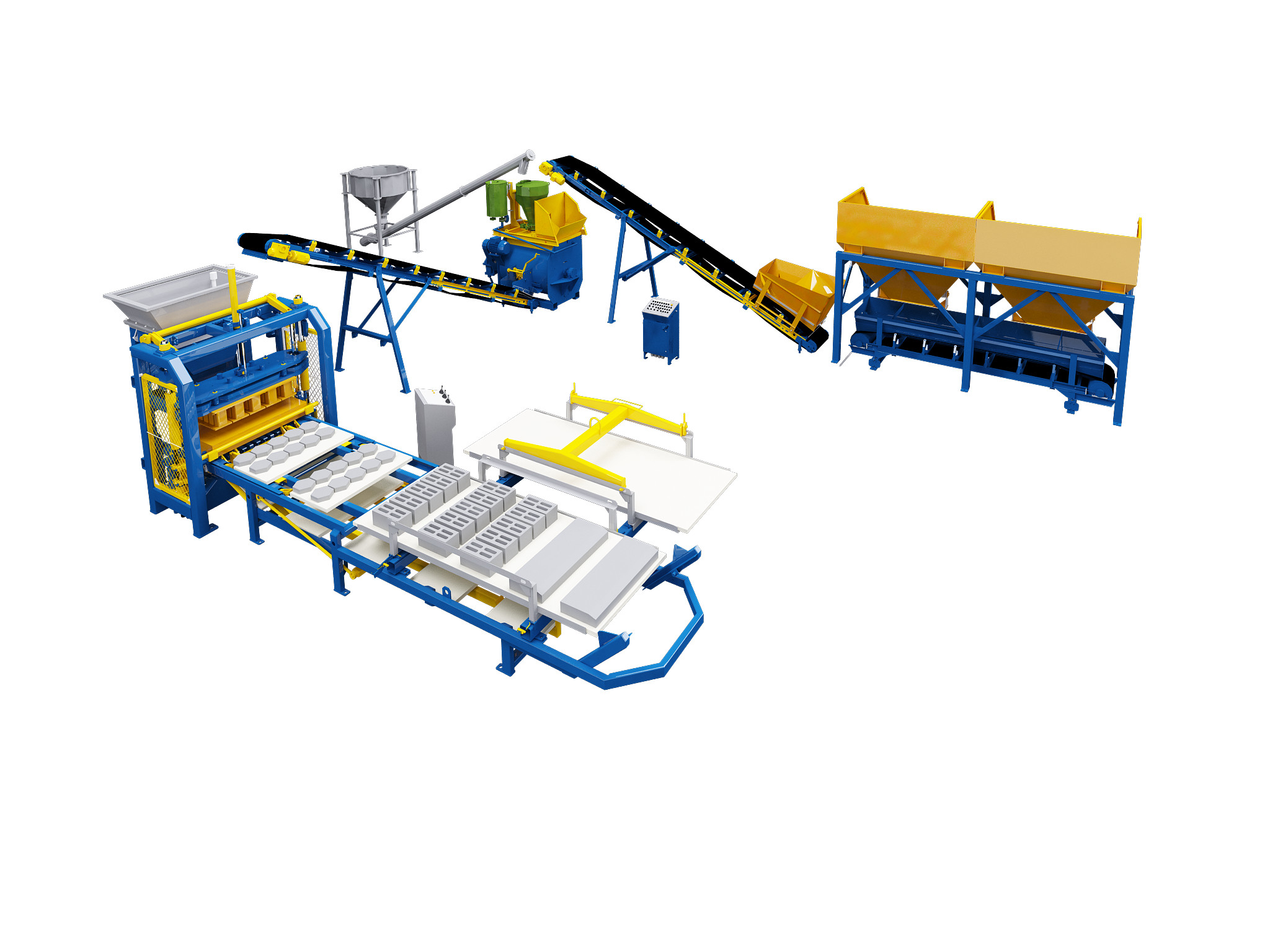

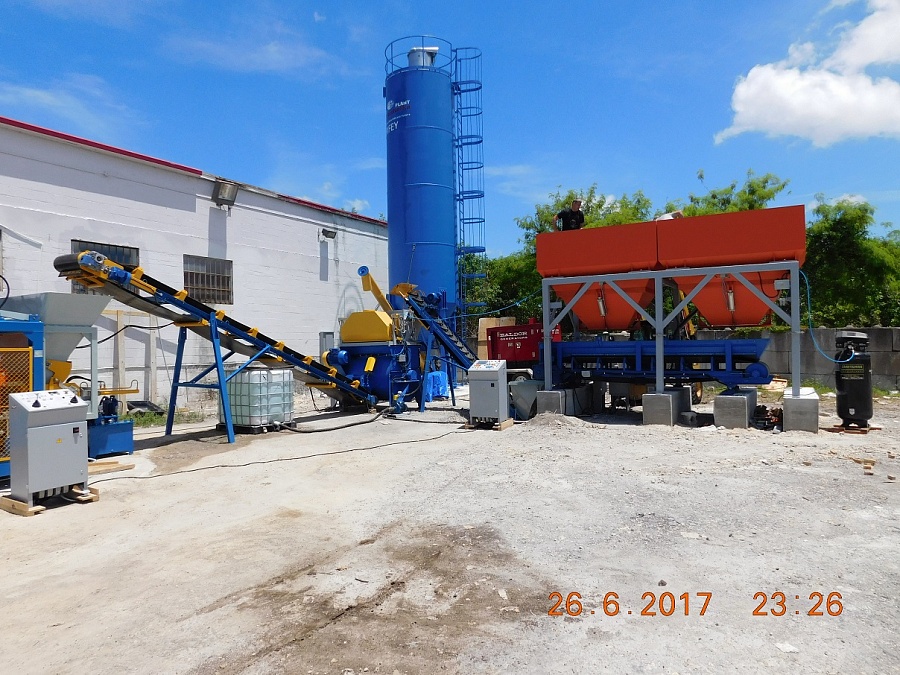

The Rifey Polyus-750-SD vibropress complex is a modern complex that has numerous advantages that make it possible to distinguish it from a number of high-quality equipment designed for the production of concrete products.

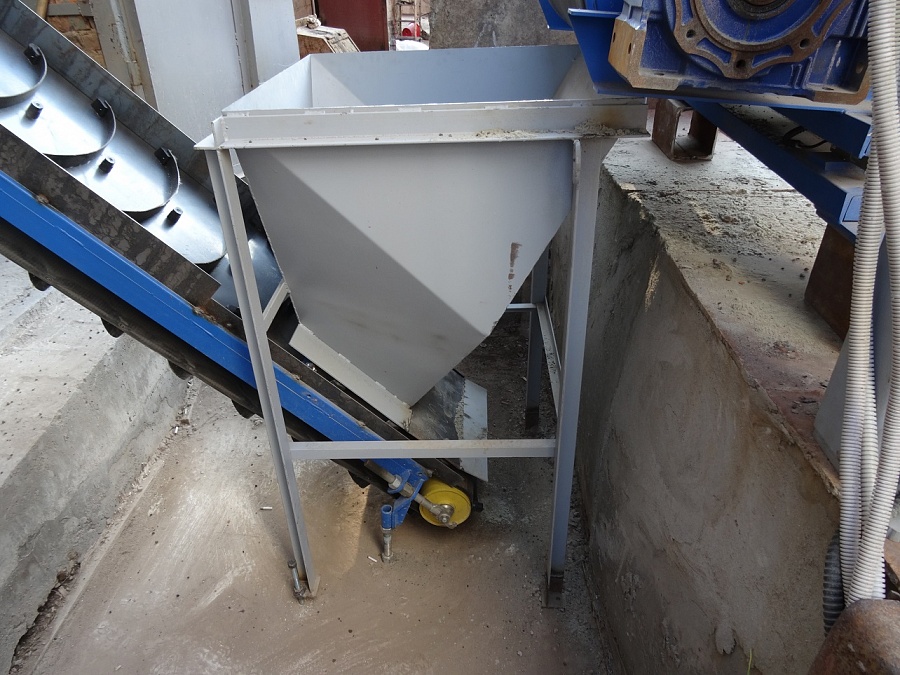

The main advantage of this equipment is the availability of a dosing system that solves such tasks as mechanization and automation of the production process of products. The dosing system itself consists of such elements as: water hoppers, cement, aggregate, belt and screw conveyors and allows accurately dosing the components necessary for the preparation of a concrete mixture. For the finished production cycle, it is enough for our client to choose a suitable cement storage capacity (silo or big-bag debagger (link)) and start making concrete.

In general, the Rifey Polyus-750-SD vibropress complex:
- is characterized by high capacity;
- is ready for long-term intensive operation;
- assumes minimized employee participation, which reduces the potential impact of the human factor;
- a wide range of replaceable matrices allows producing various options of construction products:

• hollow and solid construction blocks;
• facing and partition stone;
• crossbars;
• materials for the street area improvement, etc.

Capacity of the Rifey Polyus-750-SD complex

Hollow wall stone 390*190*188 mm.	4,800 pcs. per shift;
Partition stone 390*120*188 mm.	7,200 pcs. per shift;
Paving "rectangular" slab 200*100 mm.	504 sq. m. per shift;
Curb stone БК-4, 1,000*150*300 mm.	720 pcs. per shift;
Curb stone БК-5, 1,000*80*200 mm.	2,880 pcs. per shift;

Technical specifications of the Рифей-Полюс-750-СД complex

The concrete mixer volume by loading, m3	0.55
Number of aggregate bins, pcs.	2
Total volume of aggregate bins, m3	15
Installed capacity of the complex, kW	54.7
Operating mode	manual
Service personnel, number of persons	5
Operating conditions at ambient temperature, °C	+5...+45
Maximum weighing dose, kg
- filler hopper	1500
- cement hopper	200
- water hopper	150
Dimensions, mm
Length	20000
Width	8000
Height (excluding cement silo)	3700
Weight, kg (excluding cement silo)	10900
Consumed electric energy:
Voltage, V	380
Frequency, Hz	50
Vibropress molding area, mm	1,000*500
Height of molded products, mm	50-240
Molding cycle, sec.	30-50
