The mixture loading module is equipped with a box with an active agitator. A separate hydraulic drive of the agitator moves the agitator inside the box with a high frequency, which improves the mixture spillage into the matrix cells, and therefore makes loading faster and more uniform. The agitator movement frequency is regulated.
A special, progressive system with pneumatic clamps to fix the die and punch has been introduced on the press. This allows reducing the time to change the tooling, because the fixation and unfixing of the die and punch is mechanized and occurs due to the pressure supply/relief in the air bags.
It also becomes possible to change the vibration amplitude due to changes in the pressure in the matrix pneumatic clamp. For example, during the matrix loading, the pressure in the pads is automatically increased in order to reduce the amplitude to optimal values and eliminate the matrix swinging. During pressing, when the punch presses on the mixture and creates additional resistance, the pressure in the pads decreases, and the matrix vibration amplitude increases for better mixture laying. The pressure value during loading and pressing can be changed quickly from the control panel.

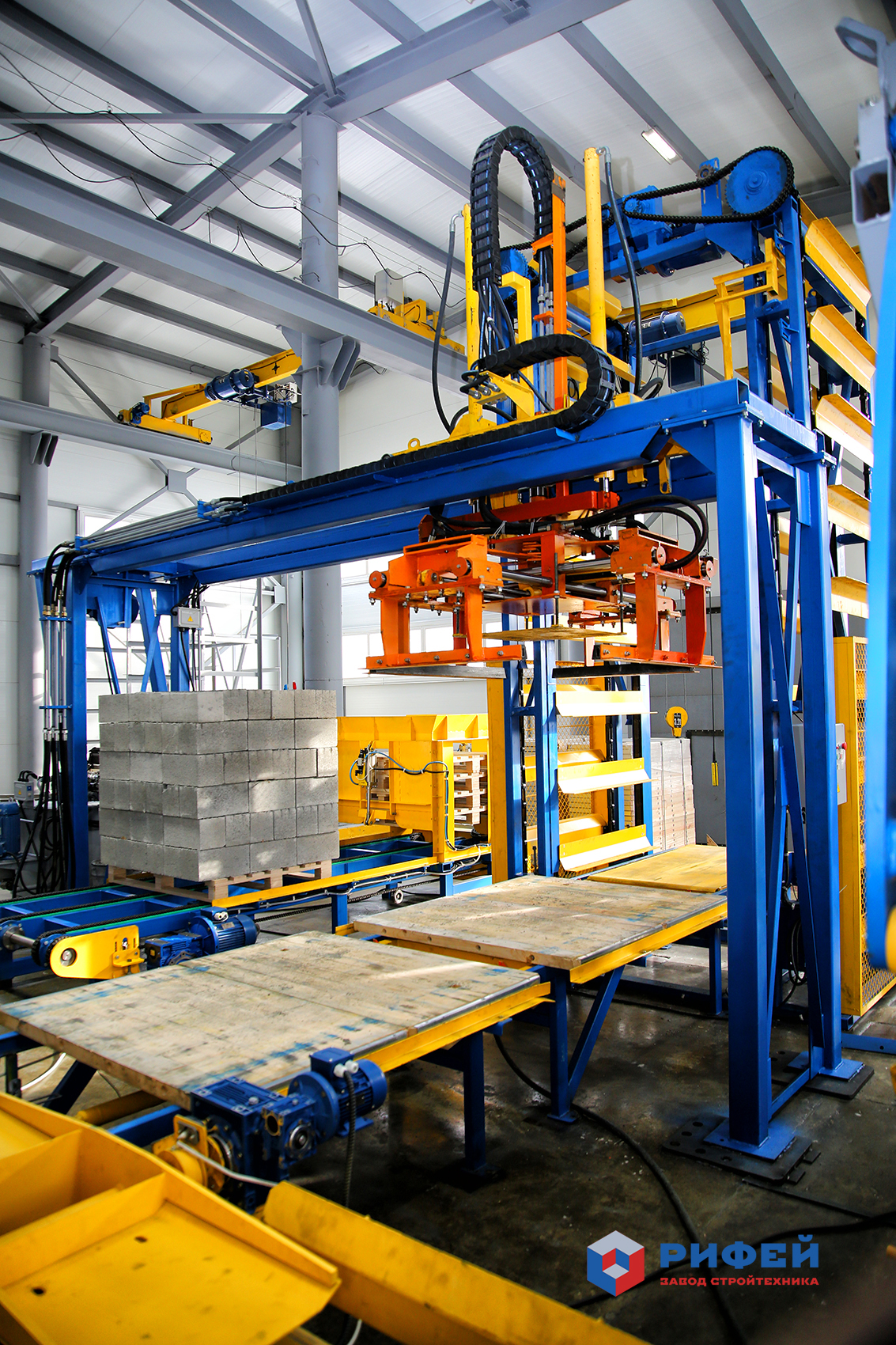

Pallet feeding module.
Structurally, it is possible for the complex to work with two types of pallets, with 1,200x800 and 1,200x1,000 dimensions.
