78 170 USD

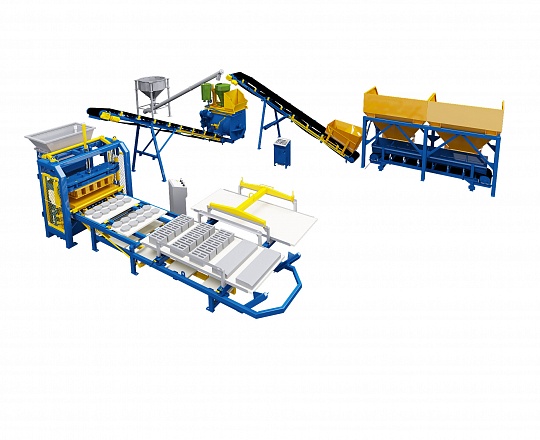

Rifey Udar-A-550-SDA-15

Rifey Udar-A-550-SDA-15
  • full

    Total

  • machine

    complex

  • 42

    sq. m trot. tiles per hour

  • 140

    border. stones per hour

In the modern world, there are quite a few different profitable business areas, one of them is the manufacture of building materials by vibrocompression.

From the general list of equipment intended for the manufacture of concrete products, one can single out Vibropress Rifey-Udar-550-SD-A , which is considered one of the best options in its segment.

The main feature of this complex is the operation of the dosing system in a fully automatic mode. fewer workers to service the vibrating press, the optimal number of workers is 3-4 people. The automatic mixing mode of the components increases the quality of the resulting mixture, which in turn improves the quality and performance of the resulting building materials, such as: wall stone, hollow and solid, paving slabs, curb stones and others. Another advantage of using the model is its high performance.

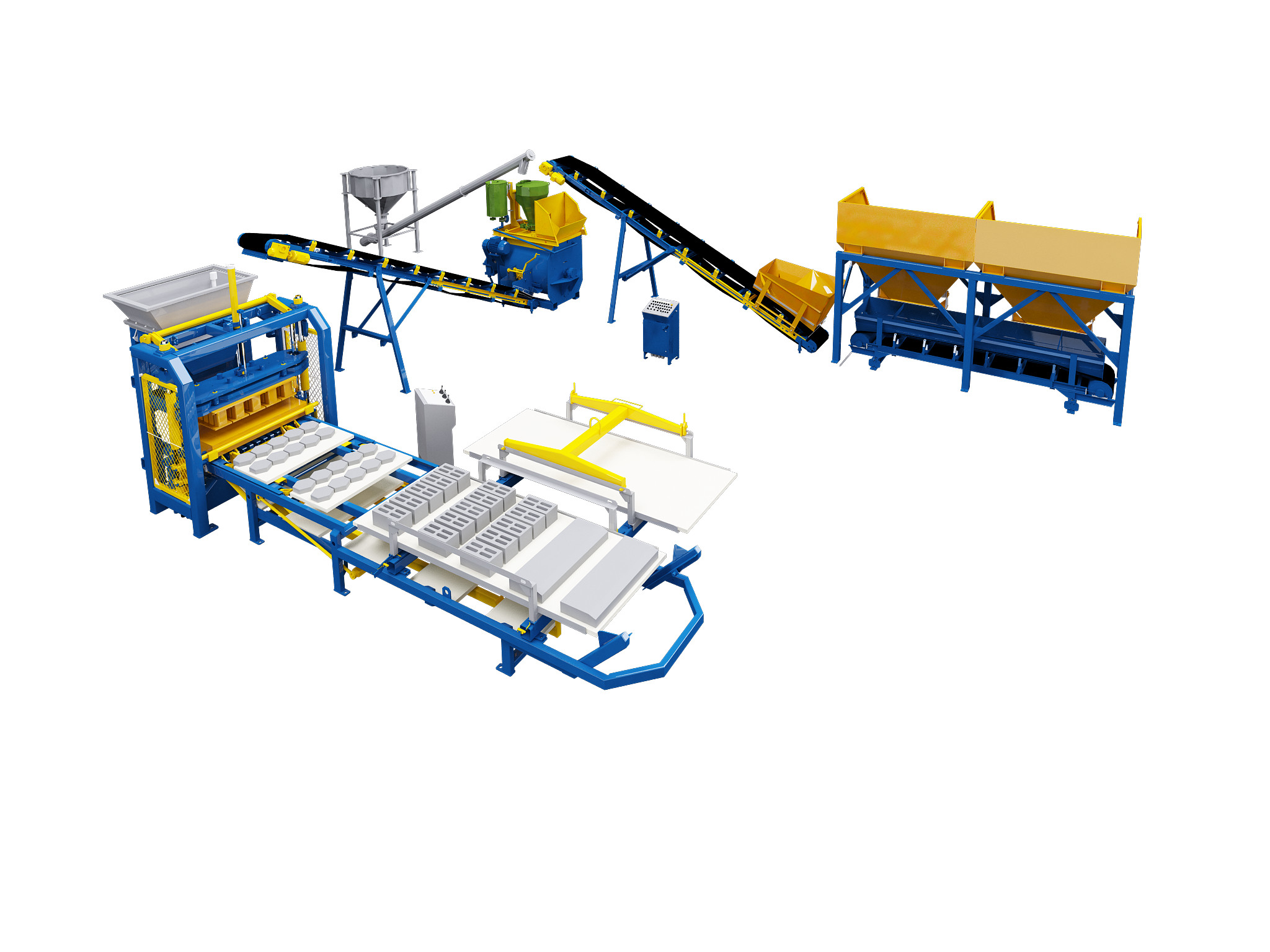

Composition of the Rifey-Udar A-550-SD-A complex as standard

Rifey-Strike-Automatic

1. Vibropress Rifey-Impact Automatic
-   Pallet feeding module (increased capacity) with traverse
-     Pallet   - 10   pcs.
-   Shelving unit - 1 pc.
-   Control panel - automatic
-   Pumping unit
-     Punch-matrix - 1 PC. (any from the catalog worth 133,000 rubles)


550-SDA dosing system

1. Concrete mixer (V = 550 l)   SG-550 without batcher

2. Batcher block BD-550SDA (cement batcher with strain gauges, flowing water batcher)   on the frame.

3. Aggregate batcher DZ-15, bunker 2, 7.5 m / cu. each. Weighing dosing system with load cells

4.   Belt conveyor KL-500-5.0   L-5.0 m

5.   Belt conveyor KL-500-5.0   L-7.0 m with an adapter hopper

6. Screw conveyor KV-6 (L-6 m)

7. Control panel for dosing system

8. Pneumatic equipment

9.   Dosing system control panel - PU-SDA




Capacity of the Rifey-Udar-SD-A complex
Hollow wall stone 390 * 190 * 188 mm 4,400 pcs. per shift;
Partition stone 390 * 90 * 188 mm 6,600 pcs. per shift;
Paving "rectangular" slab 200 * 100 mm 336 sq. m. per shift;
Curb stone БК-4, 780 * 150 * 300 mm 1,120 pcs. per shift;
Curb stone БК-5, 780 * 80 * 200 mm 3,300 pcs. per shift;

Technical specifications of the Rifey-Udar-SD-A complex
The concrete mixer volume by loading, m3 0.55
Number of aggregate bins, pcs. 2
Total volume of aggregate bins, m3 15
Installed capacity of the complex, kW 54.7
Operating mode manual
Service personnel, number of persons 5
Operating conditions at ambient temperature, ° C +5 ... + 45
Maximum weighing dose, kg:
- filler hopper 1,500
- cement hopper 200
- water hopper 150
Dimensions, mm:
Length 20,000
Width 8,000
Height (excluding cement silo) 3,700
Weight, kg (excluding cement silo) 9,400
Consumed electric energy:
Voltage, V 380
Frequency, Hz 50
Vibropress molding area, mm 790 * 390
Height of molded products, mm 30-230
Molding cycle, sec. 25-45

One of the features of the Rifey Udar-550-SD-A Rifey is the use of an automatic dosing system. This requires fewer workers to maintain the complex, the optimal number is 3-4. Automatic mixing of components improves the mixture quality, which in turn improves the quality and productivity of finished products, such as: wall, hollow and hard stones, paving slabs, curbstones and many others. An additional advantage of using the complex is greater capacity.
