61 260 USD

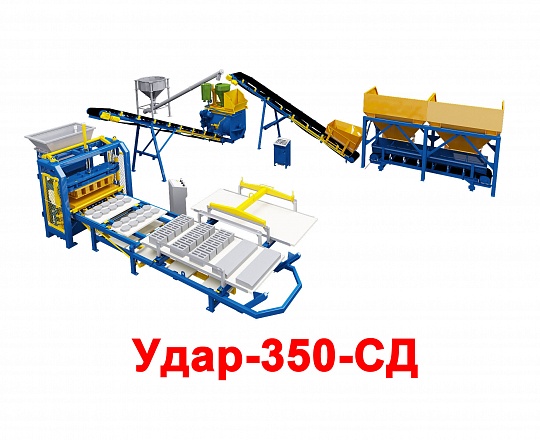

Rifey Udar-R-350-SD-15

Rifey Udar-R-350-SD-15
  • 450

    wall stones per hour

  • 680

    partition. stones per hour

  • 35

    sq.m. trot. tiles per hour

  • 90

    border. stones per hour

There are quite a lot of different profitable business lines in the modern world, one of them is the manufacture of construction materials by vibropressing.
From the general list of equipment intended for the manufacture of concrete products, it is possible to distinguish the Rifey-Udar-350-SD vibropress, which is considered one of the best options in its segment.

The advantages of the Rifey-Udar-350-SD unit include the fact that it uses a dosing system for the mixture components, which allows attracting fewer workers to service the vibropress, the optimal number of workers is 3-4. The semi-automatic mixing mode of the components increases the quality of the resulting mixture, which in turn improves the quality and performance of the resulting construction materials, such as: wall stone, hollow and full-bodied, paving slab, curb stone, etc. Another advantage of using the model is its high capacity.

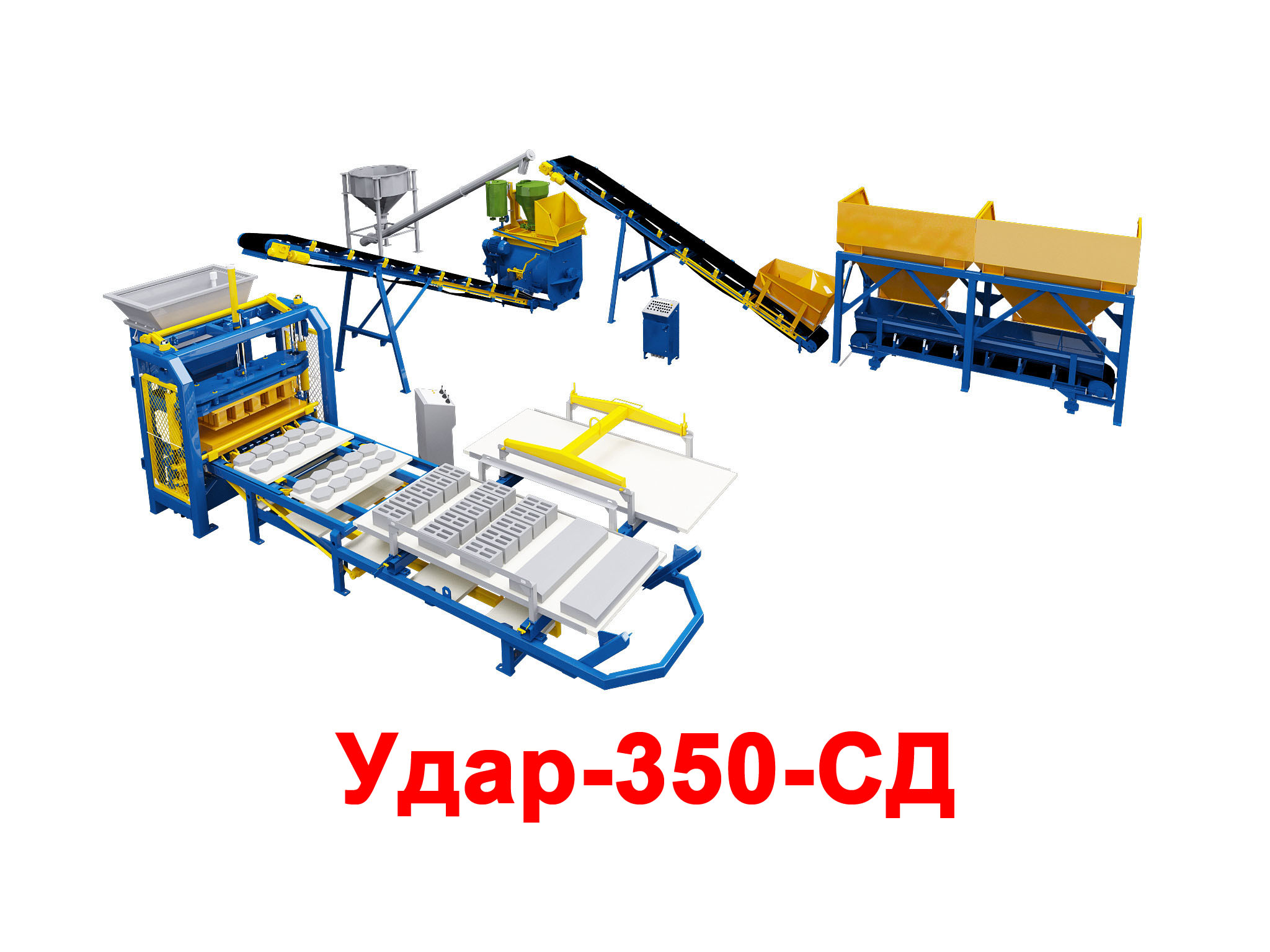

The content of the Rifey-Udar R-350-SD complex in the basic configuration
1. Rifey-Udar R vibropress with oil station and control panel
2. Pallet feeding module with a traverse and 1 rack
3. Technological pallets - 10 pcs.
4. Punch matrix - 1 pc. (any from the catalog worth 1 800 $)
5. SG-350 concrete mixer (V-0.35 cubic meters) without hopper
6. BD-350-Weight hopper unit;
7. DZ-15 filler hopper (2 bunkers of 7.5 cubic meters each, weighing dosing system with load cells, DZ-3K control panel)
8. KL-500-5.0 (L-5.0 m) belt conveyor
9. KL-500-5.0 (L-5.0 m) belt conveyor with adapter bin
10. КВ-6 screw conveyor (L- 6 m)
11. SB4 / F-270 LB50 Remeza compressor
Capacity of the Rifey-Udar-350-SD complex
Hollow wall stone 390*190*188 mm 3,600 pcs. per shift;
Partition stone 390*90*188 mm 5,400 pcs. per shift;
Paving "rectangular" slab 200*100 mm 280 sq. m. per shift;
Curb stone БК-4, 780*150*300 mm 720 pcs. per shift;
Curb stone БК-5, 780*80*200 mm 3,000 pcs. per shift;

Technical specifications of the Rifey-Udar-350-SD complex
The concrete mixer volume by loading, m3 0.35
Number of aggregate bins, pcs. 2
Total volume of aggregate bins, m3 15
Installed capacity of the complex, kW 48
Operating mode manual
Service personnel, number of persons 5
Operating conditions at ambient temperature, °C +5...+45
Maximum weighing dose, kg:
- filler hopper 1,500
- cement hopper 115
Dimensions, mm:
Length 20,000
Width 8,000
Height (excluding cement silo) 3,700
Weight, kg (excluding cement silo) 9,400
Consumed electric energy:
Voltage, V 380
Frequency, Hz 50
Vibropress molding area, mm 790*390
Height of molded products, mm 50-230
Molding cycle, sec. 25-45

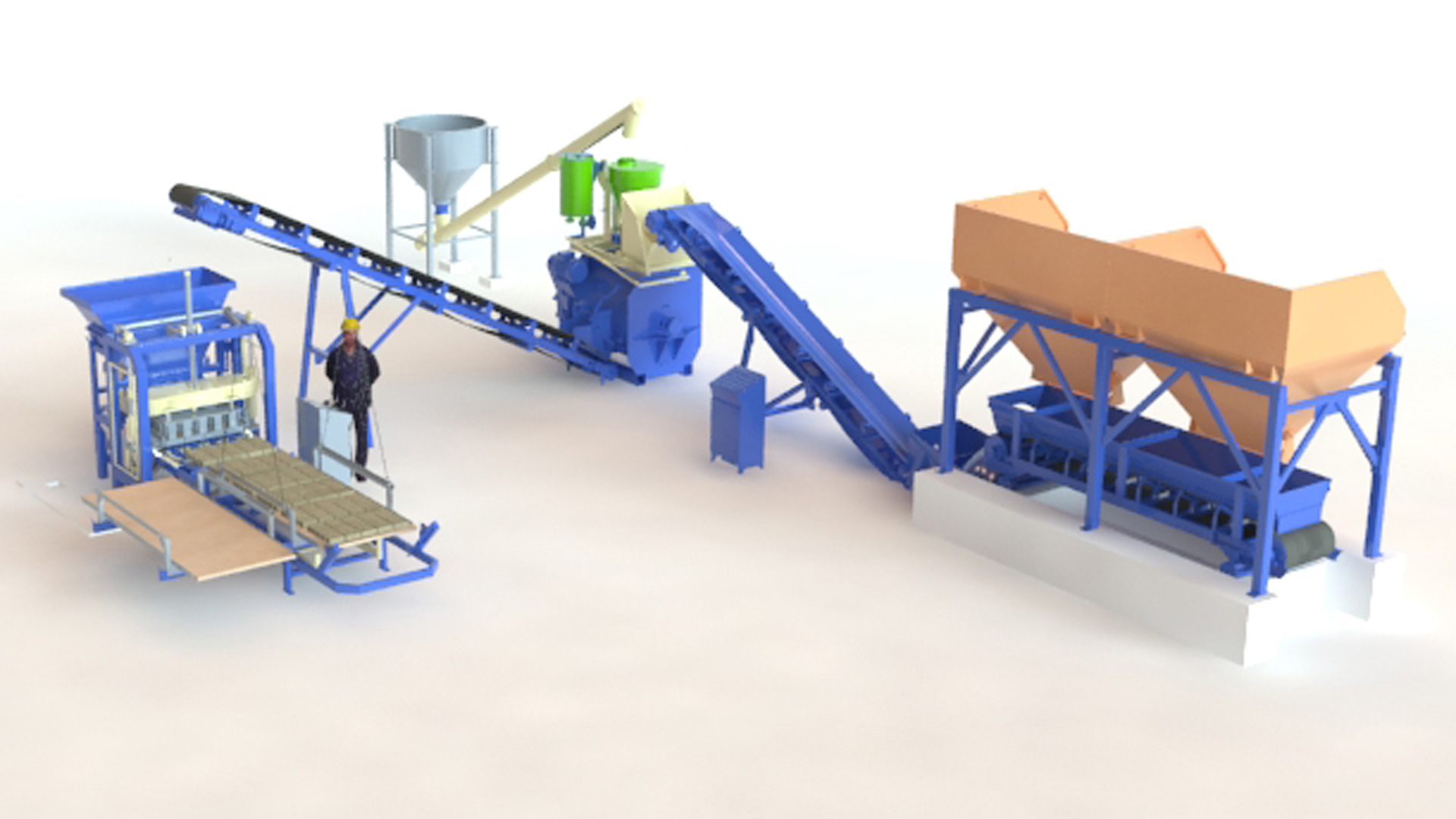

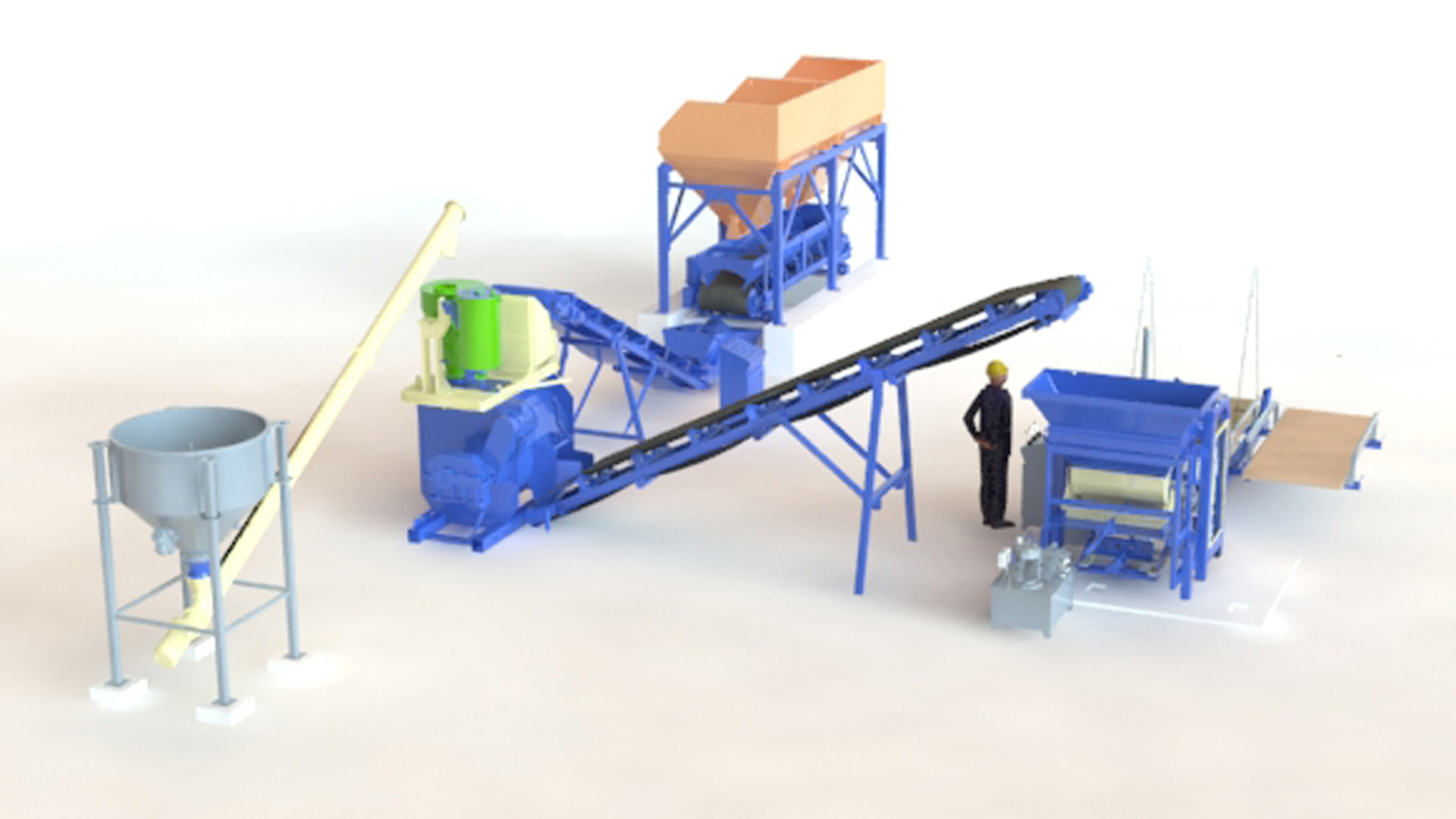

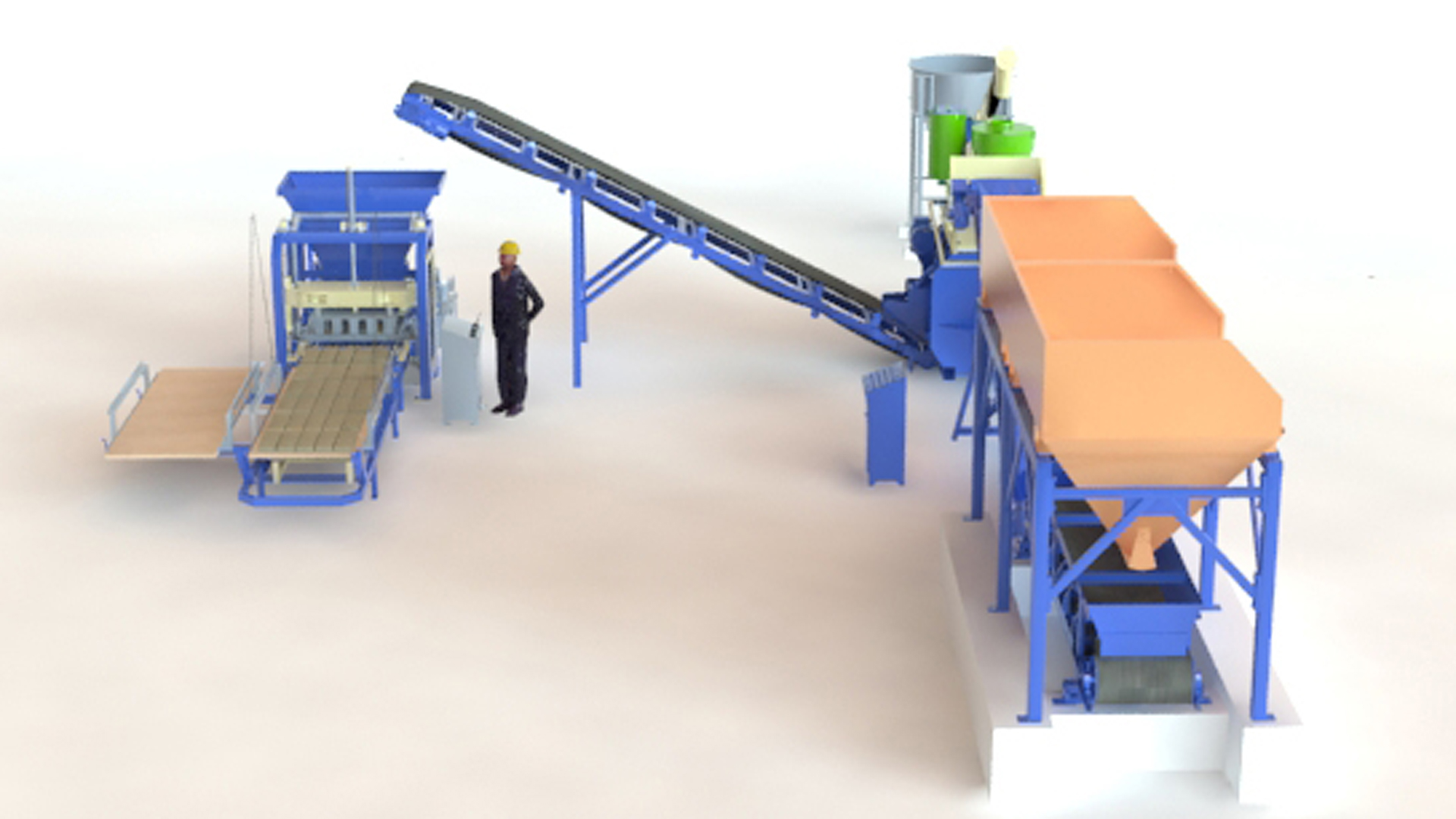

The complex includes:
  • the Rifey-Udar vibropress equipped with a punch matrix 101.6;
  • pallet feeding and loading modules;
  • belt conveyor;
  • SG-350 concrete mixer;
  • screw type conveyor;
  • hydraulic equipment;
  • vibropress itself;
  • filler hopper on load cells equipped with two bins;
  • BD-350-Вес filler hopper unit;
  • remote control that puts the model into semi-automatic operation mode.
The Rifey-Udar-350-SD unit produces most of the specialized construction products from concrete mixture

Features The Rifey-Udar-350-SD vibropress has various operational features that you should pay attention to, the main of which is the use of a dosing system for the construction mixture components completed on the basis of the SD-350 mixer, which increases the ease of unit operation and the quality of the products.
The total unit power - 48 kW. The product molding area is 400x800 mm, with a molding height of 50-250 mm, which makes it possible to produce a large range of finished concrete products.
It is also possible to distinguish the unit dimensions, which allow its operation in a limited area.
