74 150 USD

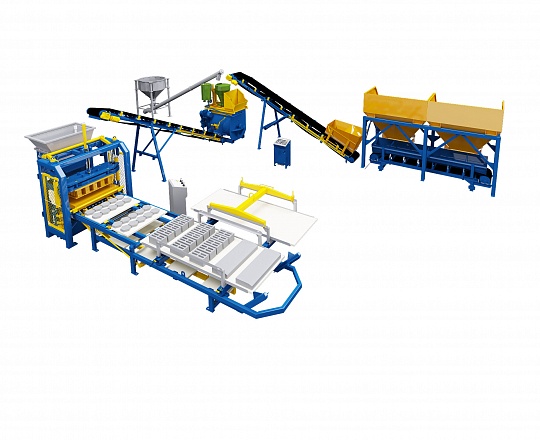

Rifey Udar-R-550-SDA-15

Rifey Udar-R-550-SDA-15
  • full

    systems

  • machine

    dosing

  • 35

    sq.m. trot. tiles per hour

  • 90

    border. stones per hour

There are quite a lot of different profitable business lines in the modern world, one of them is the manufacture of construction materials by vibropressing.
From the general list of equipment intended for the manufacture of concrete products, it is possible to distinguish the Rifey-Udar-550-SD-A vibropress, which is considered one of the best options in its segment.

The main feature of this complex is the dosing system operation in a fully automatic mode. The advantages of the Rifey-Udar-550-SD-A unit include the fact that it uses a dosing system for the mixture components, which allows attracting fewer workers to service the vibropress, the optimal number of workers is 3-4. The automatic mixing mode of the components increases the quality of the resulting mixture, which in turn improves the quality and performance of the resulting construction materials, such as: wall stone, hollow and full-bodied, paving slab, curb stone, etc. Another advantage of using the model is its high capacity.

Rifey-Udar R 1. Rifey-Udar vibropress
- Pallet feeding module (increased capacity) with a traverse
- Pallet - 10 pcs.
- Rack - 1 pc.
- Control panel
- Pumping unit
- Punch matrix - 1 pc. (any from the catalog worth 1 800 $)
550-SD-Adosing system 1. SG-550 concrete mixer (V = 550 l) without hopper.
2. BD-550SDA hopper unit (cement hopper with load cells, flow-through water hopper), on a frame. Flow-through water hopper
3. DZ-15 filler hopper, 2 bins of 7.5 cubic meters each. Weighing dosing system with load cells.
4. KL-500-5.0 (L-5.0 m) belt conveyor
5. KL-500-5.0 (L-5.0 m) belt conveyor with adapter bin.
6. KV-6 (L-6 m) screw conveyor
7. Dosing system control panel
8. Pneumatic equipment.
9. PU-SDA dosing system control panel
Capacity of the Rifey-Udar-550-SD-A complex
Hollow wall stone 390 * 190 * 188 mm 3,600 pcs. per shift;
Partition stone 390 * 90 * 188 mm 5,400 pcs. per shift;
Paving "rectangular" slab 200 * 100 mm 280 sq. m. per shift;
Curb stone БК-4, 780 * 150 * 300 mm 720 pcs. per shift;
Curb stone БК-5, 780 * 80 * 200 mm 3000 pcs. per shift;

Technical specifications of the Rifey-Udar-SD-A complex
The concrete mixer volume by loading, m3 0.55
Number of aggregate bins, pcs. 2
Total volume of aggregate bins, m3 15
Installed capacity of the complex, kW 54.7
Operating mode manual
Service personnel, number of persons 5
Operating conditions at ambient temperature, ° C +5 ... + 45
Maximum weighing dose, kg:
- filler hopper 1,500
- cement hopper 200
- water hopper 150
Dimensions, mm:
Length 20,000
Width 8,000
Height (excluding cement silo) 3,700
Weight, kg (excluding cement silo) 9,400
Consumed electric energy:
Voltage, V 380
Frequency, Hz 50
Vibropress molding area, mm 790 * 390
Height of molded products, mm 30-230
Molding cycle, sec. 25-45


The complex includes:
  • the Rifey Strike P vibropress equipped with a punch matrix 101.6;
  • pallet feeding and loading modules;
  • belt conveyor;
  • SG-550 concrete mixer;
  • screw type conveyor;
  • hydraulic equipment;
  • vibropress itself;
  • filler hopper on load cells equipped with two bins;
  • module of water and cement hoppers on load cells;
  • remote control that puts the model into semi-automatic operation mode.
The Rifey-Udar R-550-SD-A unit produces most of the specialized construction products from concrete mixtures.

One of the features of the Rifey-Udar-550-SD-A is the use of an automatic dosing system. This requires fewer workers to maintain the complex, the optimal number is 3-4. Automatic mixing of components improves the mixture quality, which in turn improves the quality and productivity of finished products, such as: wall, hollow and hard stones, paving slabs, curbstones and many others. An additional advantage of using the complex is greater capacity.
