Manufacturing of Rifey and Кondor vibrating presses. Rifey Concrete plants

Official Website

16 390 USD

Rifey-Arbolit-SP

Rifey-Arbolit-SP
  • 300

    Wall blocks per hour

  • 450

    Partition. blocks per hour

  • 27

    Paving slabs, sq. m / hour

  • 67

    Curb stones per hour

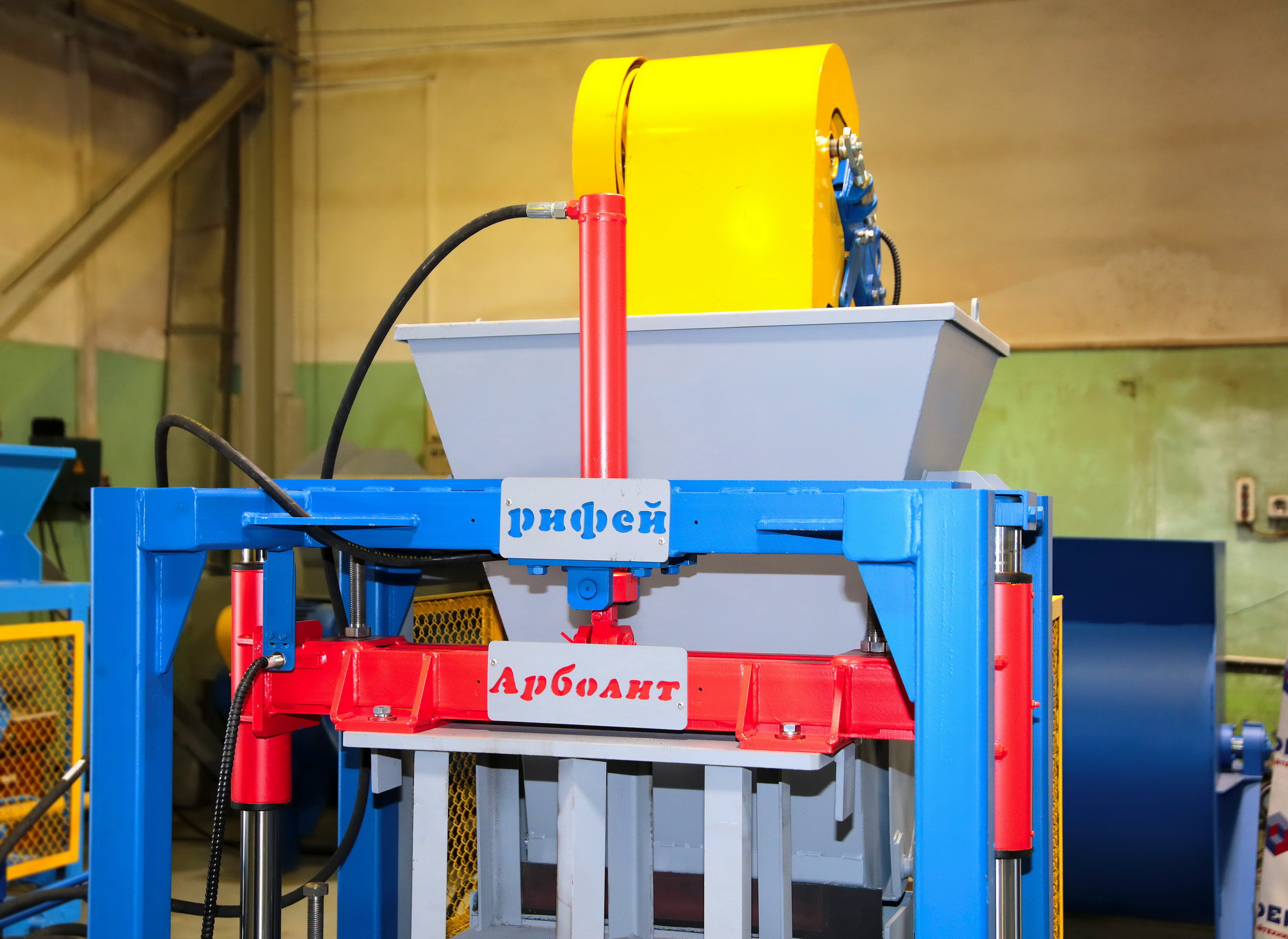

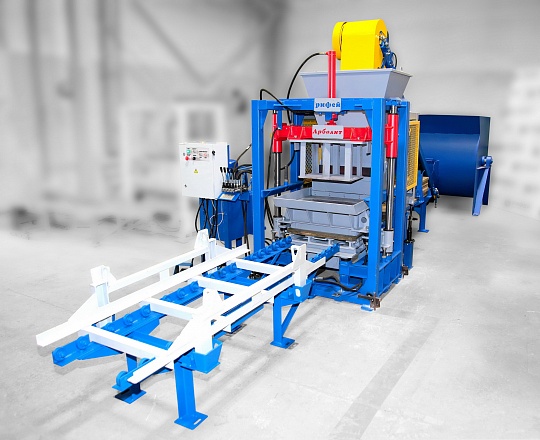

Vibropress Rifey-Arbolit is a time-tested installation in the line of vibropresses Rifey,   presented for sale by the Stroytekhnika plant. This model refers to the types of specialized equipment designed for the production of a certain type of product. This option is designed specifically for creating wood concrete blocks used in modern low-rise construction. In addition to making wood concrete blocks, the range of products includes also wall stones, "warm block" stones, partition blocks, cinder blocks, sand blocks, expanded clay blocks and others.

The list of advantages of the Rifey-Arbolit Vibropress   includes the attractive cost of this type of equipment and the high quality of manufactured products. The price advantage of the offer is due to the minimization of the need to purchase additional parts. The speed of production of wood concrete blocks is up to 150   pieces per hour. The vibropress also produces up to 150 wall blocks per hour. Both hollow and solid versions of products are produced. To service the entire process of manufacturing blocks, 2-4 employees are enough, from whom special technical knowledge and experience in servicing this type of equipment are not required. Machine control is intuitive. Many processes in the equipment are fully mechanized.

What else distinguishes this complex from analogues on the market:

Ingredients:

VIBROPRESS RIFEY ARBOLIT-SP

  1. Shaping block
  2. Oil station
  3. Control Panel
  4. Power cabinet
  5. Punch-die (1 pc.)
  6. Technological pallet (1   pcs)
  7. Module loading mixture "C"
  8. P-pallet feeder

Additional options:

1. Mixer with a volume of 1000 l - SG-1000-Arbolit - 4 363 $

Specifications

Forming zone 400x600 mm
Height of molded products 200 mm
Installed capacity 7 kW
Weight 1.38 tons
Staff 3-4 people
Length 3400 mm
Width 1600 mm
Height 2665 mm

Performance

Arbolite, wall
  blocks from 150 pcs / hour
Partition blocks from 220 pcs / hour

Features

The peculiarities of this type of equipment include the ability to manufacture arbolite and wall blocks and stones using the method of vibrocompression of rigid concrete under the most favorable conditions from an economic point of view . The equipment pays for itself in less than six months. This model is in demand among small businesses not only due to its low cost, but also due to the price-quality ratio. With a relatively low cost of equipment, the quality and speed of production of arboblocks are very high.

Installation is easy to manage . To obtain durable building materials in operation, it is enough to mix binders, water and aggregates. In the role of aggregates, virtually any bulk materials used in construction work can be used. Including production is carried out on the basis of screenings of crushed stone production, sand, slag, expanded clay. Binds any bulk materials to cement.

The advantage of the model is the possibility of placing it in a small area. All equipment of the line in this case is compact, which helps to make the work more convenient and simple. The vibropress is ready to work both indoors and outdoors. Work continues at temperatures from +5 to +45 degrees Celsius.
